1. Procure "Nomes dos Pontos de Acesso (APN)”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-da878edd-c66e-4794-ba5e-1b0cccb6ebb0.png?width=202&height=448)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-64dce275-c0b2-4310-8e97-c5395ddcaf8c.png?width=202&height=448)
Prima Cartões SIM e redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0af41904-c294-4f32-9f30-09988fd59ab8.png?width=202&height=448)

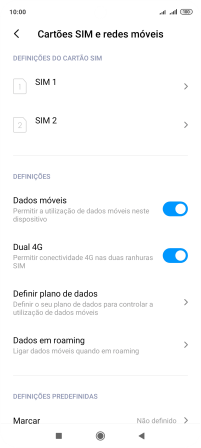

Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15877455-bea3-4363-a016-7fb0f8291a4c.png?width=202&height=448)

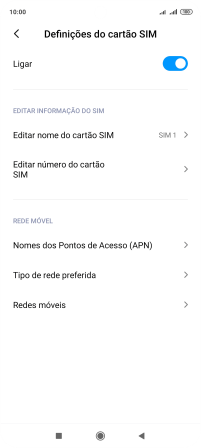

Prima Nomes dos Pontos de Acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-84a66e82-d29b-4dd3-97af-bef7e6d09272.png?width=202&height=448)
2. Estabeleça uma nova ligação de dados

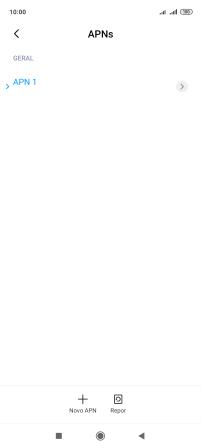

Prima Novo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9f04afce-5784-42fd-a6c7-f04fea393c16.png?width=202&height=448)

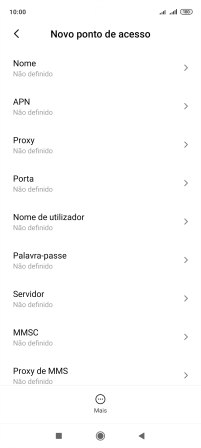

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5e3f6374-216b-4fb0-86d4-765d92d6f8ab.png?width=202&height=448)

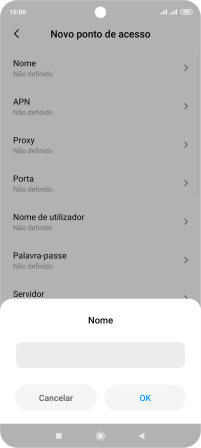

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4dbe4242-f11a-4083-98db-6477588b3267.png?width=202&height=448)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5e3f6374-216b-4fb0-86d4-765d92d6f8ab.png?width=202&height=448)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4dbe4242-f11a-4083-98db-6477588b3267.png?width=202&height=448)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5e3f6374-216b-4fb0-86d4-765d92d6f8ab.png?width=202&height=448)

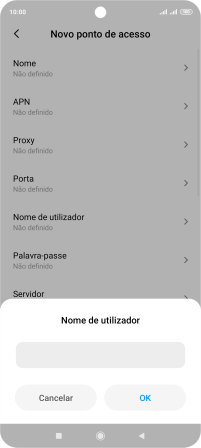

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ef8b7049-328a-401c-a6e1-9672516f9785.png?width=202&height=448)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5e3f6374-216b-4fb0-86d4-765d92d6f8ab.png?width=202&height=448)

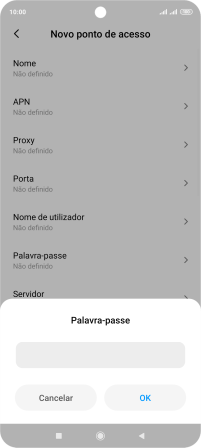

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f0ca5ffb-fe06-44f5-8593-b6c0cd3cdc3c.png?width=202&height=448)
vodafone
6. Introduza o código de país

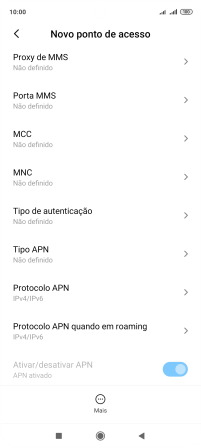

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ea663f97-1d9b-438a-82a7-686c9e0356d4.png?width=202&height=448)

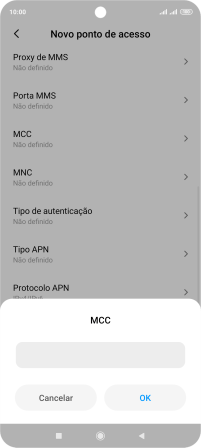

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-67b39da1-e548-4412-bc8a-f96851210a58.png?width=202&height=448)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ea663f97-1d9b-438a-82a7-686c9e0356d4.png?width=202&height=448)

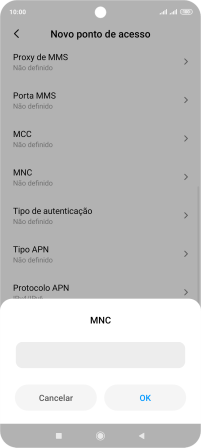

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-dc027de3-0c07-4b34-9fe9-af23eba25707.png?width=202&height=448)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ea663f97-1d9b-438a-82a7-686c9e0356d4.png?width=202&height=448)

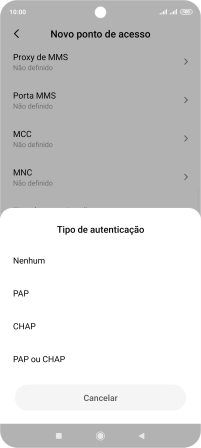

Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8356c0d7-5065-4a3b-87f0-63c2fcf53b69.png?width=202&height=448)
9. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ea663f97-1d9b-438a-82a7-686c9e0356d4.png?width=202&height=448)

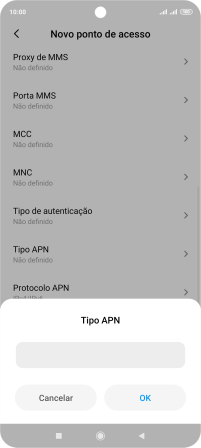

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d439ba0-1fa2-48c4-aae0-58e8e0bf3890.png?width=202&height=448)
default
10. Guarde a ligação de dados
Prima Mais.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ea663f97-1d9b-438a-82a7-686c9e0356d4.png?width=202&height=448)

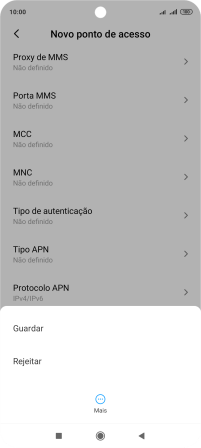

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ed6c24bc-ff64-46d6-923d-48637a27f915.png?width=202&height=448)

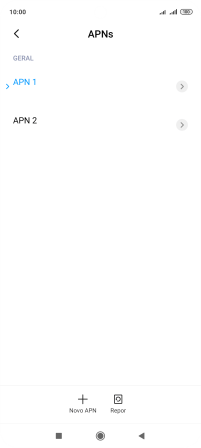

Prima a ligação de dados pretendida para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-eed4b254-5336-43f0-830b-4b70bfb29592.png?width=202&height=448)
11. Volte ao ecrã inicial

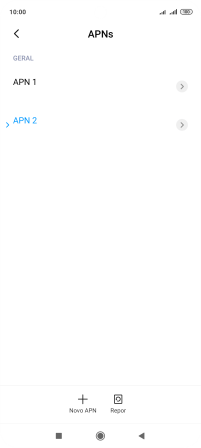

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6879898b-5a98-4c9e-8516-627adfee0208.png?width=202&height=448)
