1. Procure "Pontos de acesso (APN)”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-671be756-24d7-439c-a1c1-7a4e87fa872b.png?width=202&height=448)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0d7263e0-5d1d-4d0d-afad-d2b201de089d.png?width=202&height=448)

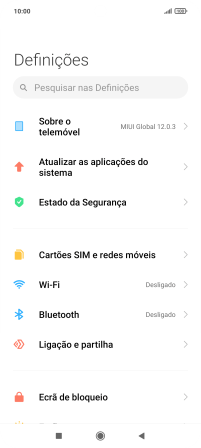

Prima Cartões SIM e redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5da3296f-344b-4f49-b974-31b47845c3da.png?width=202&height=448)

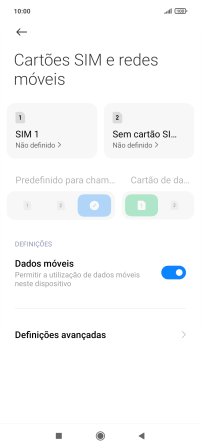

Prima o nome do cartão SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6cb7475f-3383-464a-b1cf-9367842adae9.png?width=202&height=448)

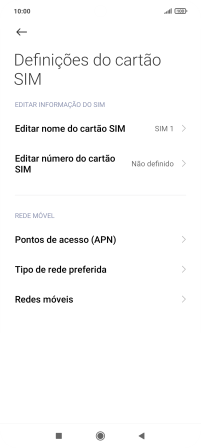

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-528444d3-c45a-492b-a3bc-000ae9230a11.png?width=202&height=448)
2. Estabeleça uma nova ligação de dados

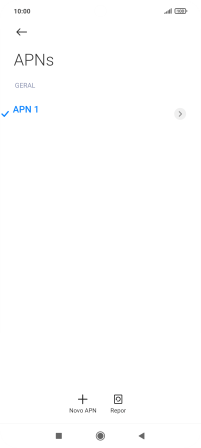

Prima Novo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b062fa67-2208-474c-b7d5-a2bf868d8204.png?width=202&height=448)

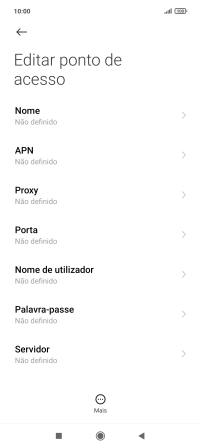

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b78880ee-c609-4cad-863b-6eb50a376f8d.png?width=202&height=448)

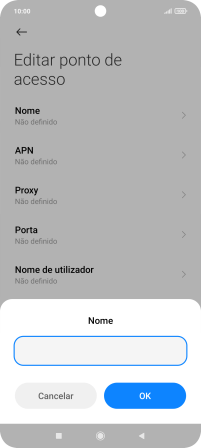

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b5611ce-7f99-4a19-a529-602bd143ea47.png?width=202&height=448)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b78880ee-c609-4cad-863b-6eb50a376f8d.png?width=202&height=448)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b5611ce-7f99-4a19-a529-602bd143ea47.png?width=202&height=448)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b78880ee-c609-4cad-863b-6eb50a376f8d.png?width=202&height=448)

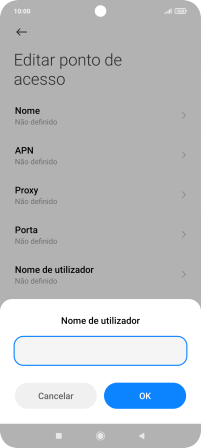

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df6c748b-866f-4ed4-a2f8-5b3eb089d39d.png?width=202&height=448)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b78880ee-c609-4cad-863b-6eb50a376f8d.png?width=202&height=448)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-00812cba-d0c7-4bce-a8ce-39186d249454.png?width=202&height=448)
vodafone
6. Introduza o código de país

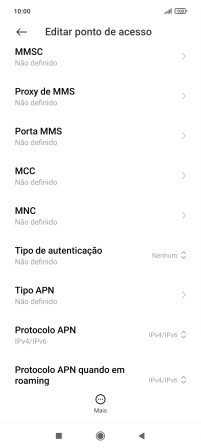

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-568aaf11-1f4f-4e66-a24b-8ce87823173c.png?width=202&height=448)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f76f07c4-5ed3-4eb7-bd63-5dccb6731bc8.png?width=202&height=448)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-568aaf11-1f4f-4e66-a24b-8ce87823173c.png?width=202&height=448)

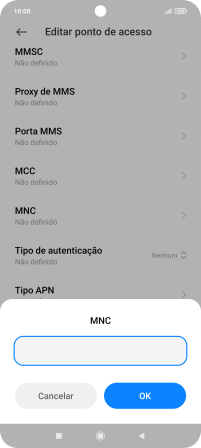

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-05be342f-f3f2-41ae-9769-84a01de55d36.png?width=202&height=448)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-568aaf11-1f4f-4e66-a24b-8ce87823173c.png?width=202&height=448)

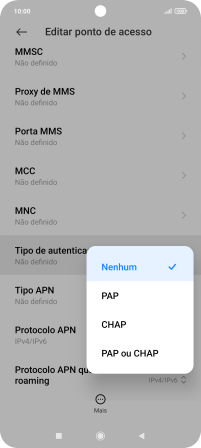

Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-511d4fde-e193-4b8f-bc7a-f71805def2f1.png?width=202&height=448)
9. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-568aaf11-1f4f-4e66-a24b-8ce87823173c.png?width=202&height=448)

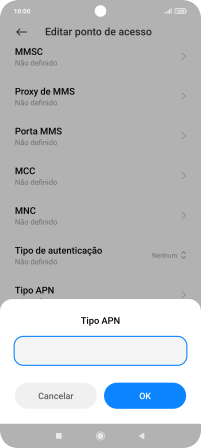

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2ab8664c-d5a8-4273-acbc-a14ecf9215bb.png?width=202&height=448)
default
10. Guarde a ligação de dados
Prima Mais.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-568aaf11-1f4f-4e66-a24b-8ce87823173c.png?width=202&height=448)

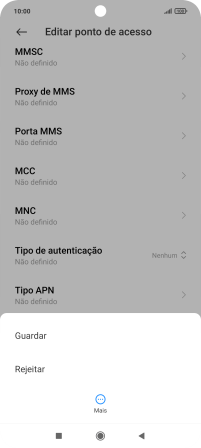

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-bdcd7182-fa01-47e1-b1d8-505d631a3ae5.png?width=202&height=448)

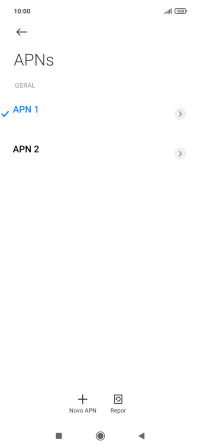

Prima a ligação de dados pretendida para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-068e4117-f383-41ea-b9e9-981b474c31ab.png?width=202&height=448)
11. Volte ao ecrã inicial

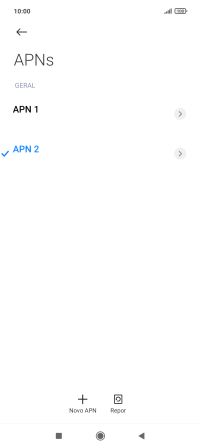

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cd05e27d-6306-4887-a33e-e49e1caf77ce.png?width=202&height=448)
