1. Procure "Pontos de acesso (APN)"
Deslize o dedo para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40f39ec3-7ca1-44d6-8b0c-a2efac1f90e8.png?width=208&height=416)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-75413c98-cf26-4c80-a7a7-64d7a5096462.png?width=208&height=416)
Prima Rede e Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e0129f9a-59f0-4748-aa48-0a5cd47ec550.png?width=208&height=416)
Prima Rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b04abd6c-c3b6-4145-971d-93332310885f.png?width=208&height=416)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b6e78afc-95fe-442e-8cf1-b45d462deca1.png?width=208&height=416)
2. Estabeleça uma nova ligação de dados

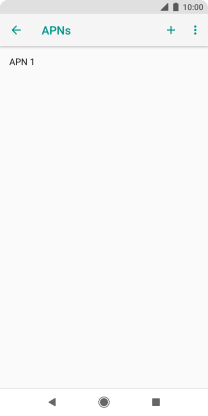

Prima o ícone de nova ligação de dados.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7fc2edd9-05c5-4bf9-988b-63115aca48ad.png?width=208&height=416)

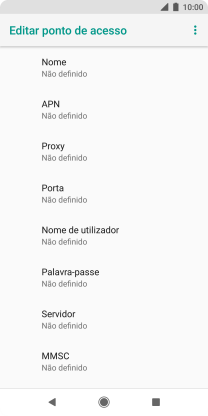

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-31d76b81-b789-4a38-92f6-54f16109f54c.png?width=208&height=416)

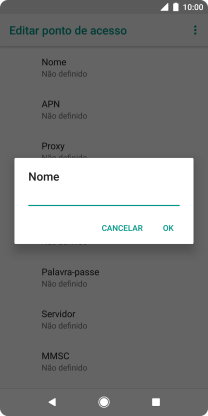

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3de1181b-e4a4-4410-b1d4-240bee6c337b.png?width=208&height=416)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-31d76b81-b789-4a38-92f6-54f16109f54c.png?width=208&height=416)

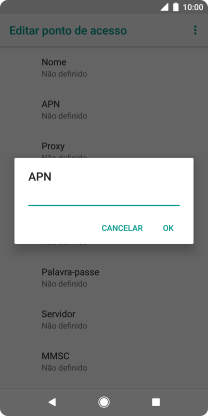

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7b59e986-e79d-4898-8d2e-8713c245b862.png?width=208&height=416)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-31d76b81-b789-4a38-92f6-54f16109f54c.png?width=208&height=416)

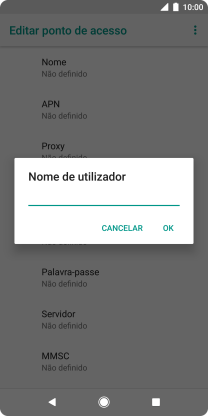

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-52219e4e-cc75-4c50-aa19-44207d8f13fb.png?width=208&height=416)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-31d76b81-b789-4a38-92f6-54f16109f54c.png?width=208&height=416)

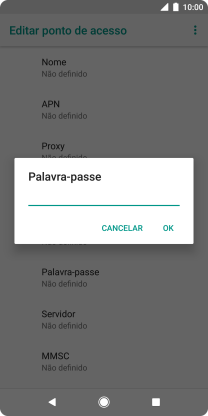

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-aed7627f-5456-46df-aae7-744b18f2af15.png?width=208&height=416)
vodafone
6. Introduza o código de país

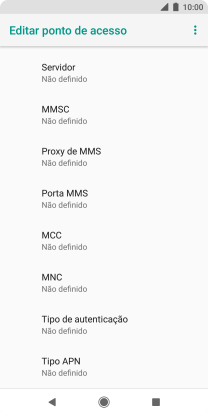

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-82a80d84-690b-4ccb-984a-e332aecfecb5.png?width=208&height=416)

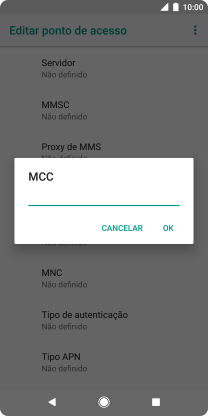

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-98087715-b7f2-446c-a102-a34a4d1aba77.png?width=208&height=416)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-82a80d84-690b-4ccb-984a-e332aecfecb5.png?width=208&height=416)

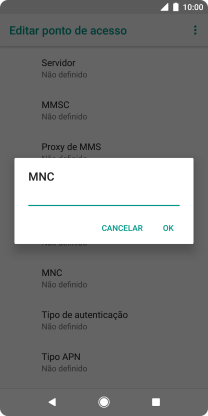

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f5785bf-0616-4d09-835c-65ed0c1f43ab.png?width=208&height=416)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-82a80d84-690b-4ccb-984a-e332aecfecb5.png?width=208&height=416)

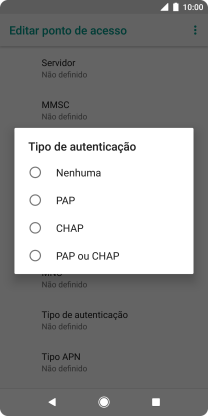

Prima Nenhuma.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3fe28a84-4b7d-44cf-bf7b-0ede8e7554ae.png?width=208&height=416)
9. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-82a80d84-690b-4ccb-984a-e332aecfecb5.png?width=208&height=416)

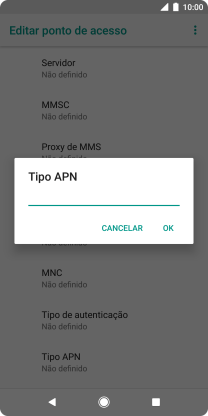

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1600942d-1b58-44ab-8525-37269ab48e5f.png?width=208&height=416)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-82a80d84-690b-4ccb-984a-e332aecfecb5.png?width=208&height=416)

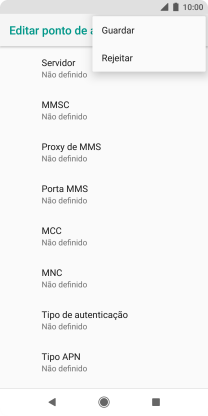

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b0a5218a-fc0d-4737-b6dd-374f87919442.png?width=208&height=416)

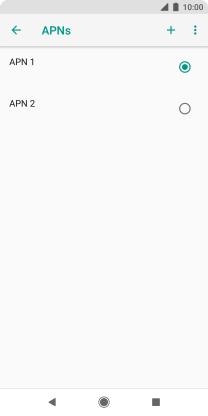

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5051a025-09b2-4413-a0f4-50689b1a676d.png?width=208&height=416)
11. Volte ao ecrã inicial

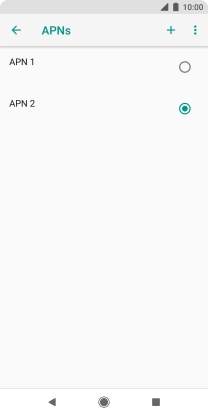

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-395acd53-34db-4174-a1fe-e342dec2b5e4.png?width=208&height=416)
