1. Procure "Pontos de acesso (APN)"
Deslize o dedo para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fd70c831-588b-4235-9e5b-58e63dc088ec.png?width=208&height=372)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b92546cd-ead3-4049-8116-a32a0cf02b45.png?width=208&height=372)
Prima Obter mais ajuda.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b13036a7-0b66-4358-b59c-109bdc205525.png?width=208&height=372)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cde0dcf1-f43c-4832-a93f-5e00a3bc3c1b.png?width=208&height=372)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e38d5967-6882-49f8-962a-f356e5513124.png?width=208&height=372)
2. Estabeleça uma nova ligação de dados
Prima o ícone de nova ligação de dados.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4ad3bcf3-fc76-46bb-bc8a-31c1315637e9.png?width=208&height=372)
Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-39235753-a425-4528-b524-1207ad13f62b.png?width=208&height=372)
Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-53f42147-c6fe-4481-aba3-9bcef7b7f38a.png?width=208&height=372)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-39235753-a425-4528-b524-1207ad13f62b.png?width=208&height=372)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7cd5e878-c0ee-4289-b95b-445afb4f9fe2.png?width=208&height=372)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-39235753-a425-4528-b524-1207ad13f62b.png?width=208&height=372)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-454fd13b-25be-4097-9ef2-838e3d1c05e5.png?width=208&height=372)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-39235753-a425-4528-b524-1207ad13f62b.png?width=208&height=372)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-45c2ca6a-588a-455d-a779-16272b0eb7e7.png?width=208&height=372)
vodafone
6. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b1b3a022-b1d1-4c38-82dc-a63e71f6b205.png?width=208&height=372)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-16db30ed-426c-4487-96ae-9426abc8b22c.png?width=208&height=372)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b1b3a022-b1d1-4c38-82dc-a63e71f6b205.png?width=208&height=372)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b3a095fd-e1ab-4dfb-b5e1-2c0fbcd277f5.png?width=208&height=372)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b1b3a022-b1d1-4c38-82dc-a63e71f6b205.png?width=208&height=372)
Prima Nenhuma.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-150c1c83-f483-4896-a39b-618bd07a95d3.png?width=208&height=372)
9. Escolha o tipo de nome do ponto de acesso (APN)
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b1b3a022-b1d1-4c38-82dc-a63e71f6b205.png?width=208&height=372)
Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c16fb70e-3cb9-4d34-99c2-772990896c55.png?width=208&height=372)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b1b3a022-b1d1-4c38-82dc-a63e71f6b205.png?width=208&height=372)
Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-20d29abd-4006-4c2c-b5cb-de92827a2837.png?width=208&height=372)

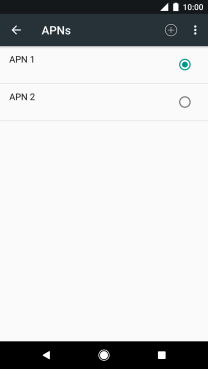

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2d4aa472-5f41-4650-a2f8-914f88857728.png?width=208&height=372)

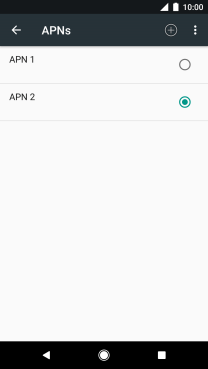

11. Volte ao ecrã inicial
Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8ccd6ba4-005a-4f4e-a413-a855fa05399e.png?width=208&height=372)
