1. Procure "Nomes ponto de acesso”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a5e470ee-794a-4fd8-bc1b-679958589c64.png?width=198&height=444)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fe04b515-1222-4bda-869f-489094d60d6c.png?width=198&height=444)
Prima Cartão SIM e rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-26783eb5-0422-4eab-a3fc-186faef6c72c.png?width=198&height=444)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-93aeefbf-2eaa-43f3-a1ab-44b43eee5469.png?width=198&height=444)
Prima Nomes ponto de acesso.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2df3ba31-deb0-4a58-b221-ae8fed87f410.png?width=198&height=444)
2. Estabeleça uma nova ligação de dados
Prima o ícone de nova ligação de dados.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3607cf25-2455-49fe-9bf1-4730b3d161b8.png?width=198&height=444)
3. Introduza o nome da ligação de dados
Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3dc9c7ad-995d-4b2c-8a43-e8e577cd0ac2.png?width=198&height=444)
Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-70d63f5d-8af1-4792-8a97-43ebce12f0fb.png?width=198&height=444)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3dc9c7ad-995d-4b2c-8a43-e8e577cd0ac2.png?width=198&height=444)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-11275b93-2c82-41ae-9c16-ca375b345969.png?width=198&height=444)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3dc9c7ad-995d-4b2c-8a43-e8e577cd0ac2.png?width=198&height=444)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ef467506-0f82-4b7b-a0d4-6c68d6ef4bd4.png?width=198&height=444)
vodafone
6. Introduza a palavra-passe
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3dc9c7ad-995d-4b2c-8a43-e8e577cd0ac2.png?width=198&height=444)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5a2ad862-fa30-4ab0-a5dc-774bf05f90f5.png?width=198&height=444)
vodafone
7. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3dc9c7ad-995d-4b2c-8a43-e8e577cd0ac2.png?width=198&height=444)

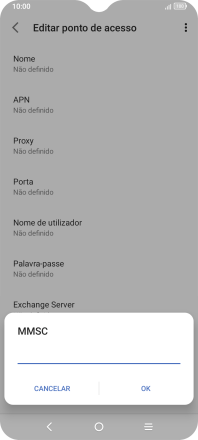

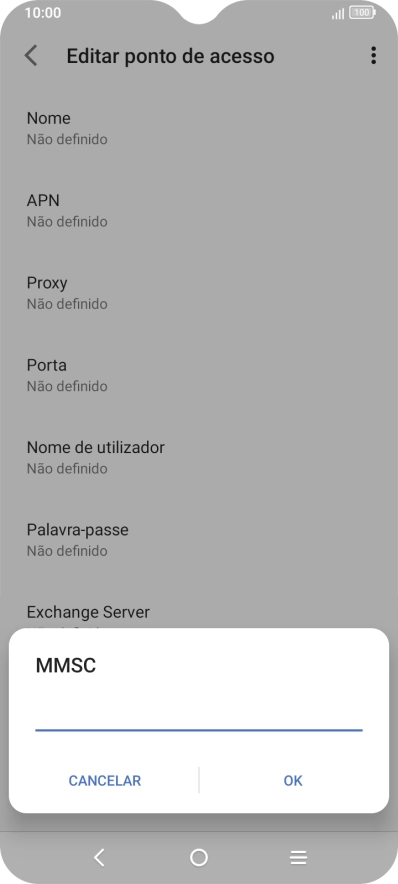

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-942261d8-afd2-4f69-b7ef-8588aee02ab3.png?width=198&height=444)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP

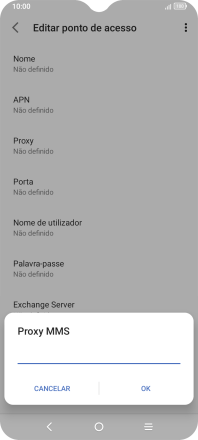

Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3dc9c7ad-995d-4b2c-8a43-e8e577cd0ac2.png?width=198&height=444)

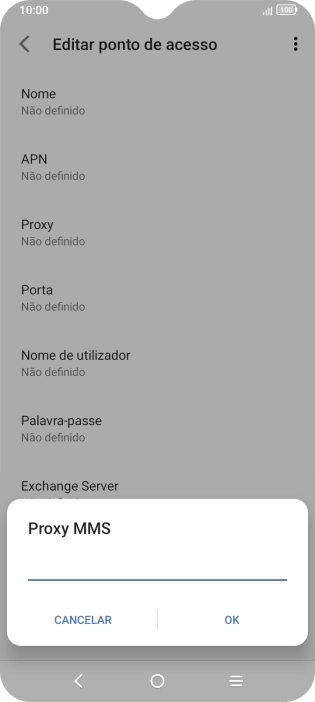

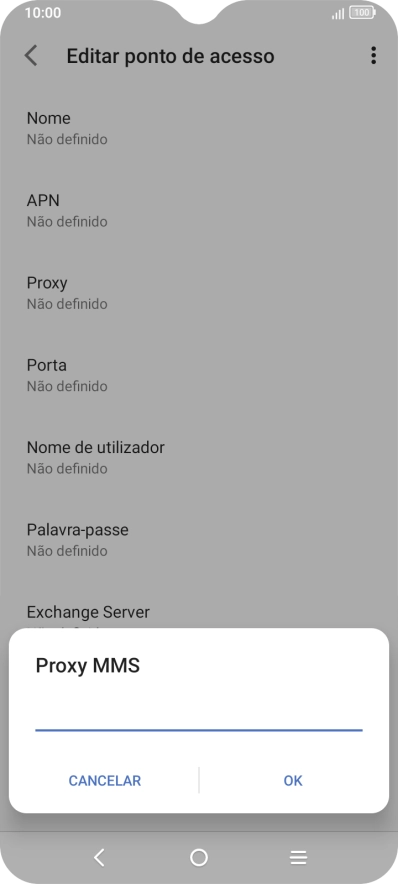

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c41ee1bd-ab61-4902-ba59-089a471016c2.png?width=198&height=444)
iproxy.vodafone.pt
9. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-51f2b3ab-45fc-48da-ba71-aa42d3daf627.png?width=198&height=444)

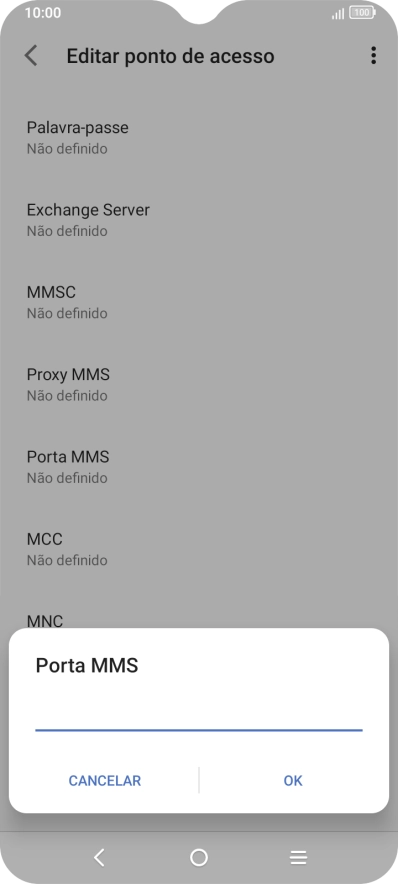

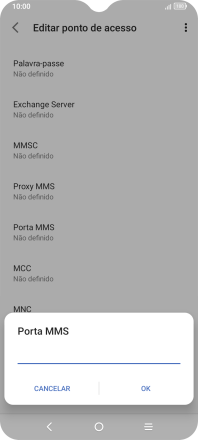

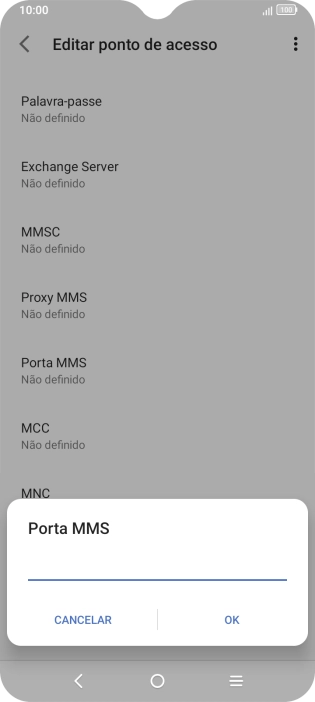

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ac425331-9bb1-46bb-b3ce-443f40ce1d7e.png?width=198&height=444)
80
10. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-51f2b3ab-45fc-48da-ba71-aa42d3daf627.png?width=198&height=444)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-62dc9369-8508-41aa-bbba-1170c428f8f9.png?width=198&height=444)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-51f2b3ab-45fc-48da-ba71-aa42d3daf627.png?width=198&height=444)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff8821fa-f5dc-4b29-9511-ddb53dad3a17.png?width=198&height=444)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-51f2b3ab-45fc-48da-ba71-aa42d3daf627.png?width=198&height=444)
Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6aea4dcc-21bd-47e3-9408-6ab7edb0105b.png?width=198&height=444)
13. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-51f2b3ab-45fc-48da-ba71-aa42d3daf627.png?width=198&height=444)
Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9b2264c7-057a-4c2c-9150-93a911516299.png?width=198&height=444)
mms
14. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-51f2b3ab-45fc-48da-ba71-aa42d3daf627.png?width=198&height=444)
Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-adce4164-5644-4c67-929c-594a6067eedf.png?width=198&height=444)
15. Volte ao ecrã inicial

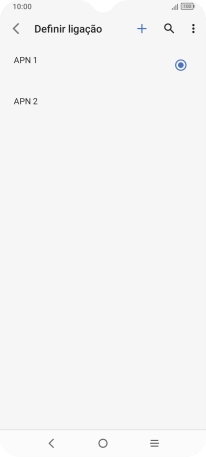

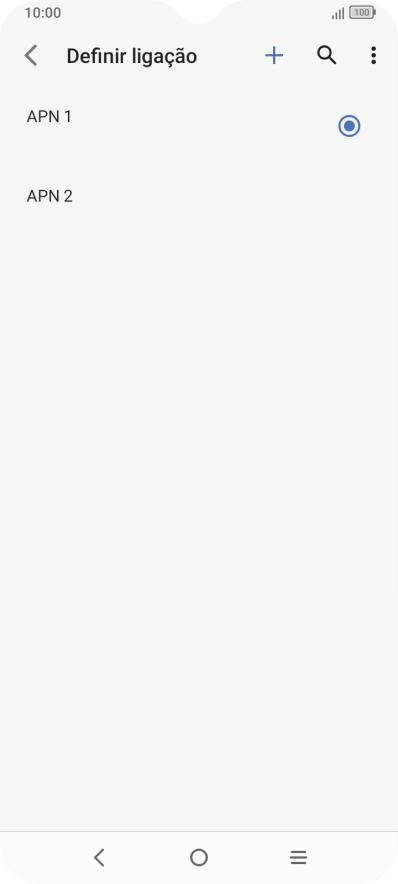

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c3dd2981-eebc-48ab-a230-246a39983b07.png?width=198&height=444)
