1. Procure "Pontos de acesso (APN)"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-94c39670-98d0-4a53-a4d4-a054a5a91c11.png?width=206&height=414)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b9f03298-3493-447b-b67a-4cc5bc667177.png?width=206&height=414)
Prima Rede e Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4ba3b4f9-5499-4e8f-8b6d-f0d1760a53a5.png?width=206&height=414)

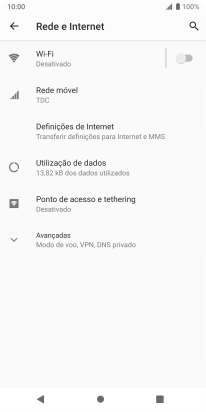

Prima Rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ad816b30-5122-4c57-a88f-73577638a032.png?width=206&height=414)

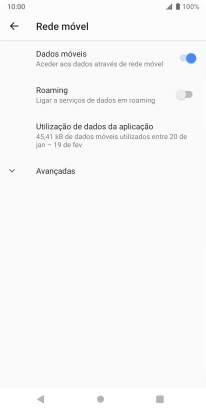

Prima Avançadas.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ca053809-6618-48eb-ba71-5f1db10398a1.png?width=206&height=414)

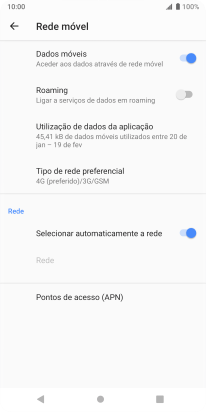

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4d35e3d3-783b-4a1f-a1b8-fb7701295c83.png?width=206&height=414)
2. Estabeleça uma nova ligação de dados

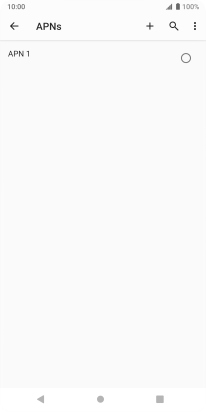

Prima o ícone de nova ligação de dados.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2ea21a52-4192-4175-b9c8-7bb470acf28e.png?width=206&height=414)

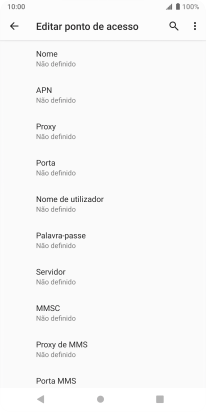

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40a490f7-a522-40fc-ac11-cf2f17d5968f.png?width=206&height=414)
Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3efcb4c8-39b1-401f-89ae-da2abac33aa3.png?width=206&height=414)
Vodafone MMS
3. Introduza o nome do ponto de acesso (APN)

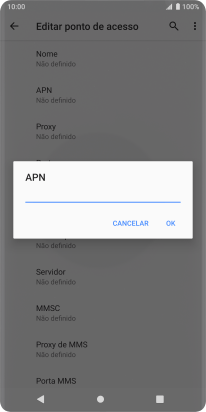

Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40a490f7-a522-40fc-ac11-cf2f17d5968f.png?width=206&height=414)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c0aebe1e-cca6-4228-8dae-c403ca5abccd.png?width=206&height=414)
net2.vodafone.pt
4. Introduza o nome de utilizador

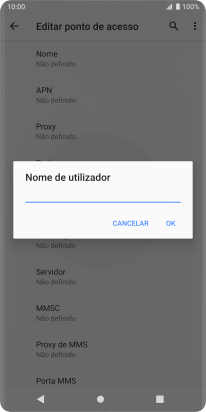

Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40a490f7-a522-40fc-ac11-cf2f17d5968f.png?width=206&height=414)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c894876f-5271-4d3e-81a0-1869ca42abc7.png?width=206&height=414)
vodafone
5. Introduza a password

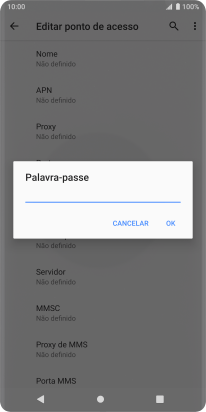

Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40a490f7-a522-40fc-ac11-cf2f17d5968f.png?width=206&height=414)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5e9cedd3-082a-40c5-a80c-0b52d627ad1e.png?width=206&height=414)
vodafone
6. Introduza o centro de mensagens multimédia

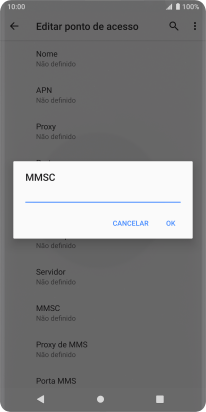

Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40a490f7-a522-40fc-ac11-cf2f17d5968f.png?width=206&height=414)
Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5117d0dd-3989-4527-9d43-407ee1fc42ff.png?width=206&height=414)
http://mms.vodafone.pt/servlets/mms
7. Introduza o endereço IP
Prima Proxy de MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-40a490f7-a522-40fc-ac11-cf2f17d5968f.png?width=206&height=414)

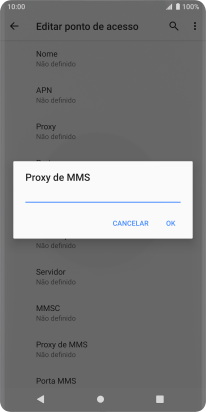

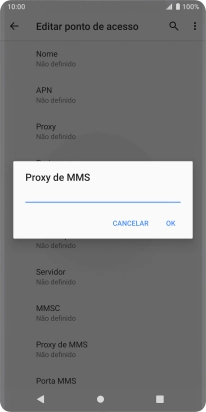

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8126e0b9-3b9e-4b99-9e5d-b2ded89142f8.png?width=206&height=414)
iproxy.vodafone.pt
8. Introduza o número da porta

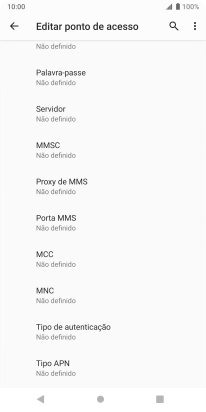

Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f899225-1ca9-49be-bb6b-aaa3d32984af.png?width=206&height=414)

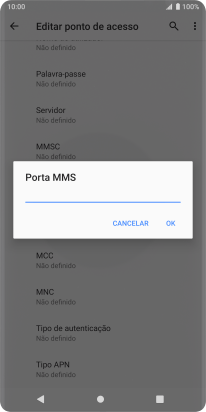

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a1cdbc8c-8f2d-4e8f-957f-0bb997bb8422.png?width=206&height=414)
80
9. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f899225-1ca9-49be-bb6b-aaa3d32984af.png?width=206&height=414)

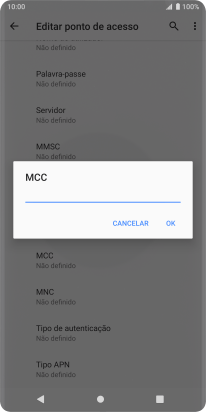

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-bb28bd35-bd32-45ea-9545-0cb5be99d7e8.png?width=206&height=414)
268
10. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f899225-1ca9-49be-bb6b-aaa3d32984af.png?width=206&height=414)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2002f6d9-e33d-427a-863e-22a5271354e0.png?width=206&height=414)
01
11. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f899225-1ca9-49be-bb6b-aaa3d32984af.png?width=206&height=414)

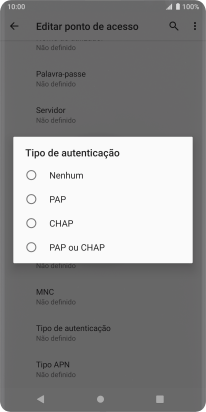

Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-90e65780-4973-464a-93df-4681da92d852.png?width=206&height=414)
12. Introduza o tipo de APN

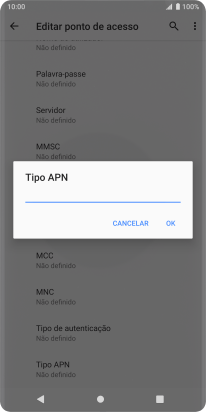

Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f899225-1ca9-49be-bb6b-aaa3d32984af.png?width=206&height=414)
Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a155021a-8a82-4cba-ad40-9a794574454b.png?width=206&height=414)
mms
13. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6f899225-1ca9-49be-bb6b-aaa3d32984af.png?width=206&height=414)

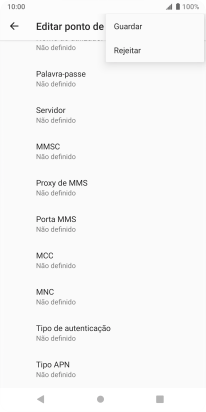

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-93e8b9cf-37de-42c5-b223-56f65571cdb4.png?width=206&height=414)
14. Volte ao ecrã inicial

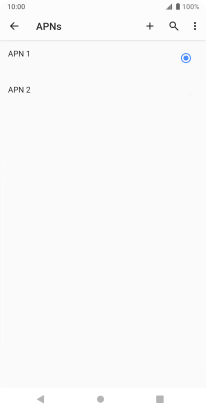

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d2a5374b-3e70-4676-ae40-1c1927f8eee8.png?width=206&height=414)
