1. Procure "Pontos de acesso (APN)"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1740c2ba-ac0f-442c-87a3-debc467be463.png?width=184&height=428)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-722fe69d-1d70-4e2b-8693-d026696616b3.png?width=184&height=428)
Prima Rede e Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-11c460d3-2aa7-4cc8-9d29-d7029610cecc.png?width=184&height=428)
Prima Rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff4bc9e7-2524-467e-8db5-3803ba1701c0.png?width=184&height=428)
Prima Avançadas.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b67d6b48-ee44-4b17-8945-f4da95f64aa6.png?width=184&height=428)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b1add19-d83e-4000-a566-07e1d0f6c3de.png?width=184&height=428)
2. Estabeleça uma nova ligação de dados

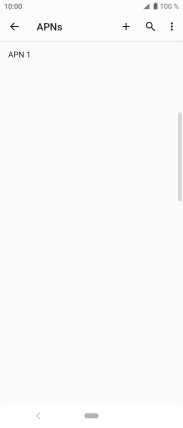

Prima o ícone de nova ligação de dados.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8992e822-d85f-4cbb-ba06-7e9e52aaa950.png?width=184&height=428)

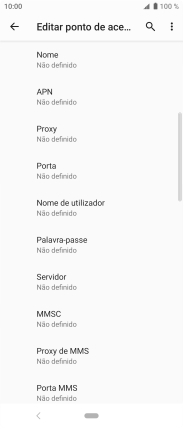

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)

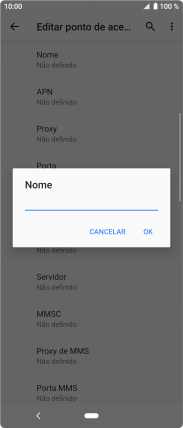

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9da07fdc-9afa-4302-b458-d01f26ace2bf.png?width=184&height=428)
Vodafone MMS
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)

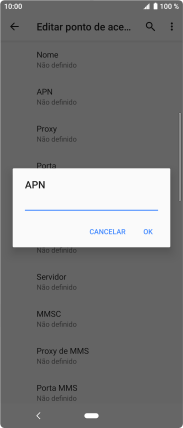

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-87f11395-faaf-4710-84ee-8c820db0db43.png?width=184&height=428)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)

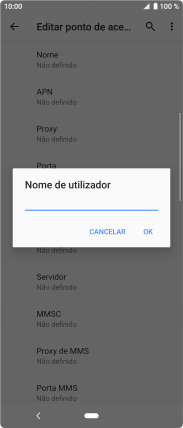

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1cc6d7dc-428d-47da-a43e-1520157ac3e0.png?width=184&height=428)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-08888683-c927-4707-a601-ea48d3c866e2.png?width=184&height=428)
vodafone
6. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)

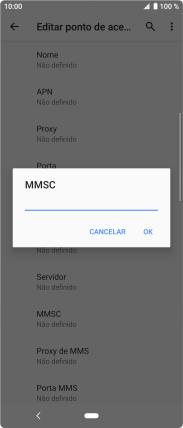

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-08b337e5-eb34-4c56-8721-e66437334f58.png?width=184&height=428)
http://mms.vodafone.pt/servlets/mms
7. Introduza o endereço IP
Prima Proxy de MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)

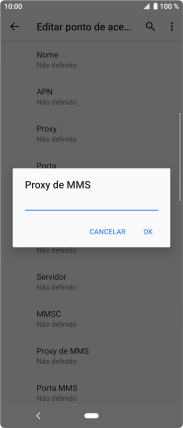

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-065a2d85-a8ad-45ef-980f-1e31acb5727e.png?width=184&height=428)
iproxy.vodafone.pt
8. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f51cf485-2839-4867-9217-d12024c9b47d.png?width=184&height=428)

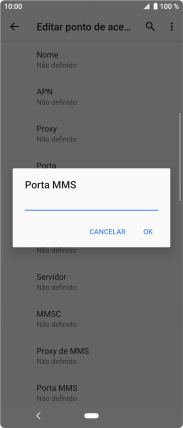

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c9a86b23-49b4-40fd-8a86-215ea1a4be5d.png?width=184&height=428)
80
9. Introduza o código de país

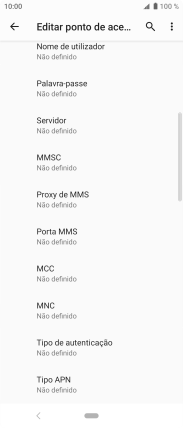

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-49fbcd92-1bab-46ab-837e-aca5c6741d45.png?width=184&height=428)

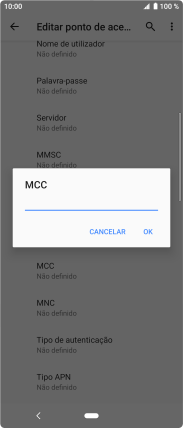

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-384db0b1-2afb-4e0f-b71d-c01b4512e85c.png?width=184&height=428)
268
10. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-49fbcd92-1bab-46ab-837e-aca5c6741d45.png?width=184&height=428)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0e6f4148-e135-47eb-b1c6-2d1db34f6f86.png?width=184&height=428)
01
11. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-49fbcd92-1bab-46ab-837e-aca5c6741d45.png?width=184&height=428)

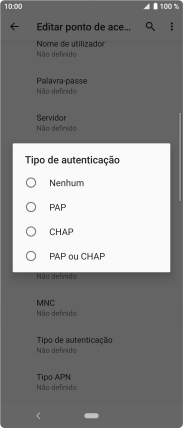

Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c21d80a1-2b06-470c-a708-b708334ac466.png?width=184&height=428)
12. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-49fbcd92-1bab-46ab-837e-aca5c6741d45.png?width=184&height=428)

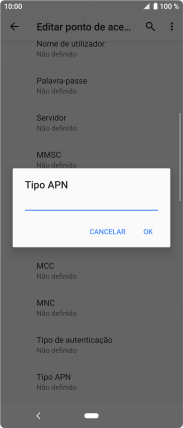

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8416d124-81c2-43d2-ade8-0559e4e72483.png?width=184&height=428)
mms
13. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-49fbcd92-1bab-46ab-837e-aca5c6741d45.png?width=184&height=428)

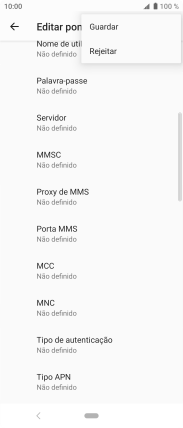

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-94db88a3-fec2-46f6-a7bf-5c92de0f7c5f.png?width=184&height=428)
14. Volte ao ecrã inicial

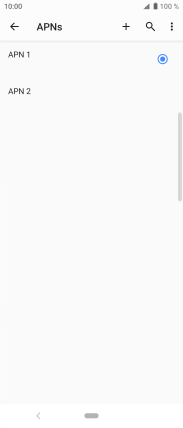

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6c0962b9-02dc-41a7-b77e-b461174a590d.png?width=184&height=428)
