1. Procure "Pontos de acesso (APN)"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-bb2dbcdb-64e2-4924-94f7-17b8492664f6.png?width=186&height=452)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-71df449e-7531-41df-9558-8e4c4ea12cb2.png?width=186&height=452)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-16230bbd-9f13-47a1-bc1e-303dd328fd66.png?width=186&height=452)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d0d8f5fb-071e-42f4-8f55-985337c86052.png?width=186&height=452)

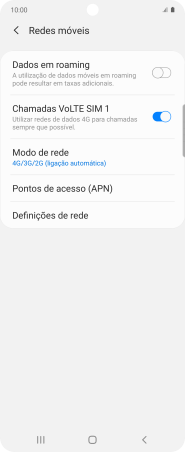

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-908d1371-3314-4f42-b609-a094424b78e7.png?width=186&height=452)
2. Estabeleça uma nova ligação de dados

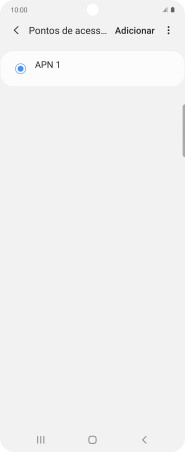

Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-752f7d23-9ddd-4a40-a5ce-b5bddbbc1a15.png?width=186&height=452)
3. Introduza o nome da ligação de dados

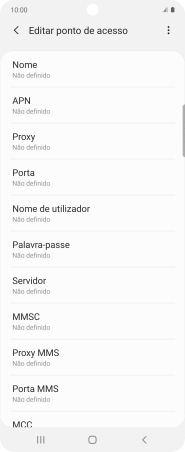

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)

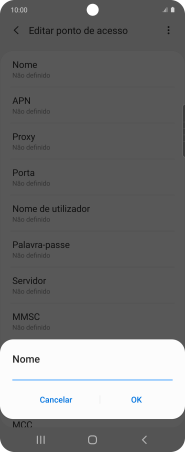

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7657ca8f-292f-4d43-bb89-5a815f597a5e.png?width=186&height=452)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)

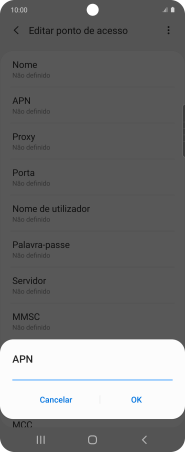

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-442f28f7-1773-4806-be39-0895023a6085.png?width=186&height=452)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)

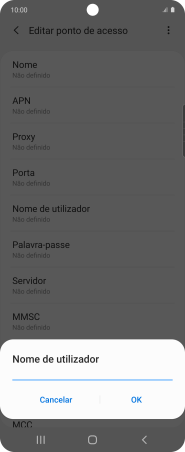

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-22ca6020-87b4-4ef9-b52d-76a48e2e19a7.png?width=186&height=452)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)

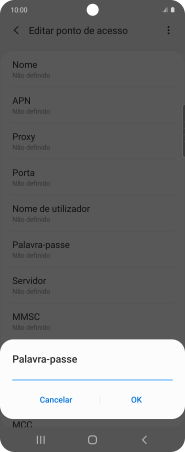

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4f3ade99-7cdf-453d-857b-b3c8649d1754.png?width=186&height=452)
vodafone
7. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)

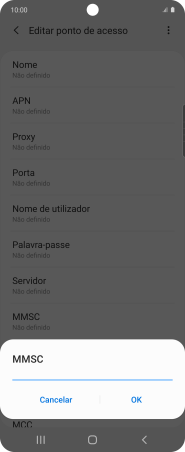

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d99c09f5-9d2c-426e-8e9c-bce1d3c65484.png?width=186&height=452)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)

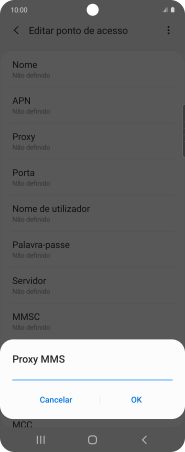

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-117b7f22-5786-4614-922a-1bae7e90f82b.png?width=186&height=452)
iproxy.vodafone.pt
9. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be8ae471-4150-4459-8f72-c11f7ec008d0.png?width=186&height=452)
Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a63d0c0d-a927-430b-b311-c134176d3075.png?width=186&height=452)
80
10. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4e08e3bd-d8d9-42ab-a266-262cf31c8ffe.png?width=186&height=452)

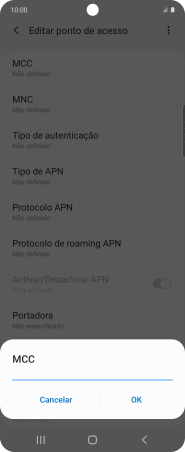

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8c673cdf-6945-4b61-bcff-a8cc769f1ea2.png?width=186&height=452)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4e08e3bd-d8d9-42ab-a266-262cf31c8ffe.png?width=186&height=452)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-868d5432-78cc-4692-b642-4a63f3e8a223.png?width=186&height=452)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4e08e3bd-d8d9-42ab-a266-262cf31c8ffe.png?width=186&height=452)

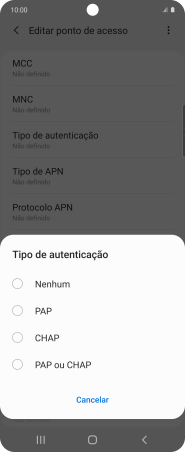

Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ad2cc772-eb57-4d56-aaa9-204a53635195.png?width=186&height=452)
13. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4e08e3bd-d8d9-42ab-a266-262cf31c8ffe.png?width=186&height=452)

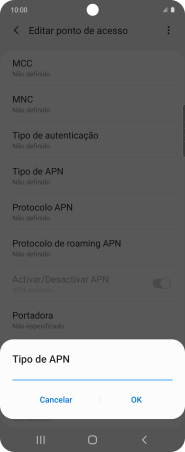

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-aee8b58b-ae10-44e0-9b54-68d92b047a2e.png?width=186&height=452)
mms
14. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4e08e3bd-d8d9-42ab-a266-262cf31c8ffe.png?width=186&height=452)

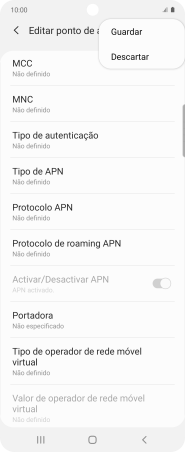

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-80c54cfb-b8c8-4a70-b6c9-cc53e049c46d.png?width=186&height=452)
15. Volte ao ecrã inicial

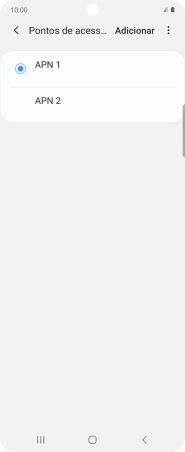

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b7d46c86-4dbc-45d7-9a8b-aa536445e19f.png?width=186&height=452)
