1. Procure "Pontos de acesso (APN)"
Deslize o dedo para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b188a5e-bd9b-4789-a888-3648356b32f3.png?width=216&height=386)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5254f815-7920-422c-8df3-3631d6dc52f6.png?width=216&height=386)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a2e95dcd-bed1-4d51-a172-1887756a5b38.png?width=216&height=386)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-06472d98-4c3c-4c7d-a833-02e113ab2bfb.png?width=216&height=386)
2. Estabeleça uma nova ligação de dados

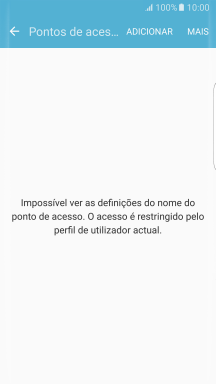

Prima ADICIONAR.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-50287114-fd43-4b18-83a8-1882b58b725d.png?width=216&height=386)

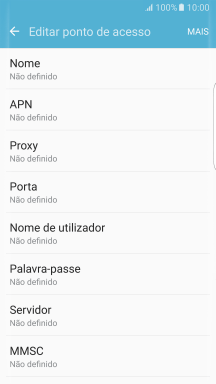

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-828b6563-a120-42c8-b527-7646735fc390.png?width=216&height=386)

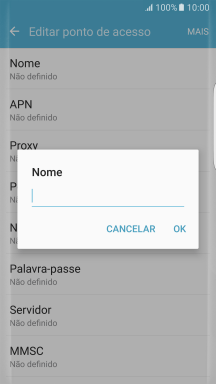

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-79c45895-e3fd-4a25-a56b-9d5b9f463b90.png?width=216&height=386)
Vodafone MMS
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-828b6563-a120-42c8-b527-7646735fc390.png?width=216&height=386)

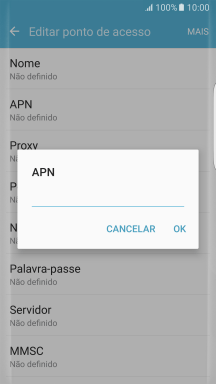

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-78650039-cfff-4832-84d8-360dc0c736d1.png?width=216&height=386)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-828b6563-a120-42c8-b527-7646735fc390.png?width=216&height=386)

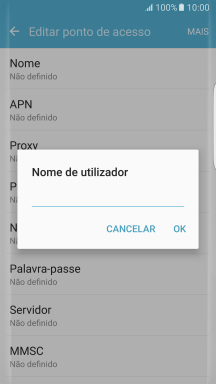

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4b02551a-3b8c-4ae6-b724-324798821e55.png?width=216&height=386)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-828b6563-a120-42c8-b527-7646735fc390.png?width=216&height=386)

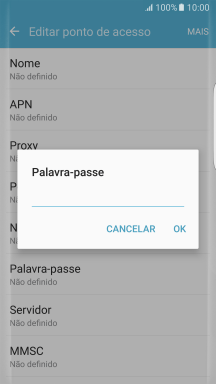

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-90ae9e7e-9bf5-4b73-8f98-f9188be4ab84.png?width=216&height=386)
vodafone
6. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-828b6563-a120-42c8-b527-7646735fc390.png?width=216&height=386)

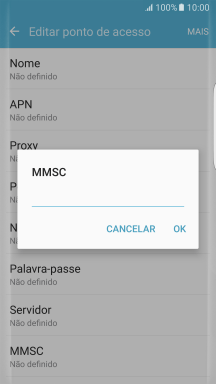

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-96c4c89c-46ea-4f8f-801d-749d24de3b95.png?width=216&height=386)
http://mms.vodafone.pt/servlets/mms
7. Introduza o endereço IP

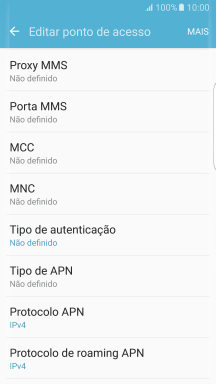

Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)

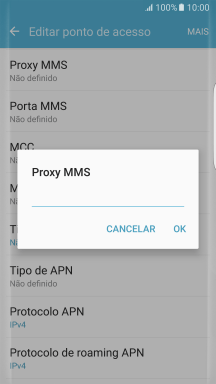

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-98b96388-bccc-4af5-9761-ab99dfa76cd7.png?width=216&height=386)
iproxy.vodafone.pt
8. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)
Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fb054a9f-87cf-460f-adb0-5e54fc10bc36.png?width=216&height=386)
80
9. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)

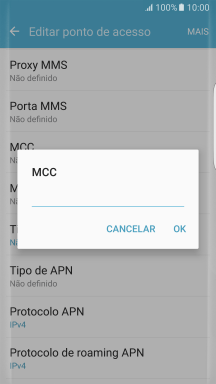

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d70fdfb3-2648-46d7-8c6b-415f384abc53.png?width=216&height=386)
268
10. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)

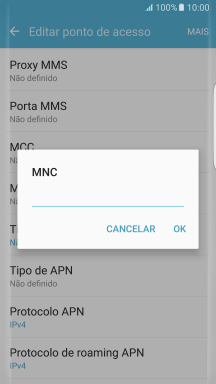

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fe86d1b6-5632-45e6-a22b-87d23b7f034a.png?width=216&height=386)
01
11. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)

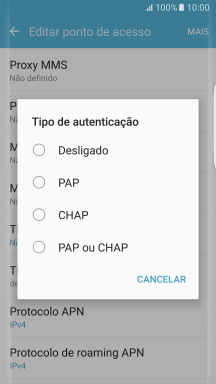

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3f3d0992-c342-40e1-9254-11632bdcf54a.png?width=216&height=386)
12. Escolha o tipo de nome do ponto de acesso (APN)
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)

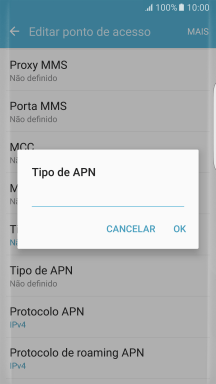

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fde2aac6-df18-4f2c-b3c7-caf5e7f8e627.png?width=216&height=386)
mms
13. Guarde a ligação de dados
Prima MAIS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5abe87fd-3888-44e0-b645-5d946bd130c1.png?width=216&height=386)

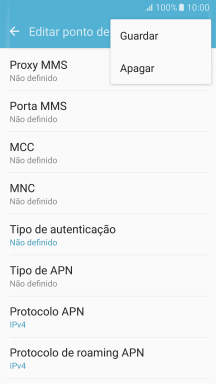

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b732ba12-4837-44a0-8c34-6afe071bfcf6.png?width=216&height=386)
14. Volte ao ecrã inicial

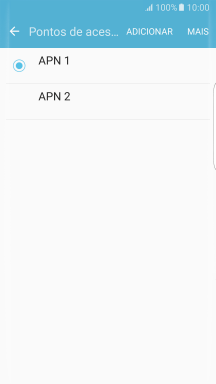

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-706a70bc-4c53-4aac-a700-530b9c937899.png?width=216&height=386)
