1. Procure "Pontos de acesso (APN)”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c618eecc-edbf-4b71-a2cb-9b544815daaf.png?width=202&height=448)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-806ffee4-c470-4040-bf97-e4330eed0674.png?width=202&height=448)

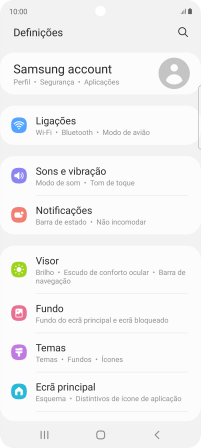

Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c6e87bda-32af-4d81-8670-5ac50829d18e.png?width=202&height=448)

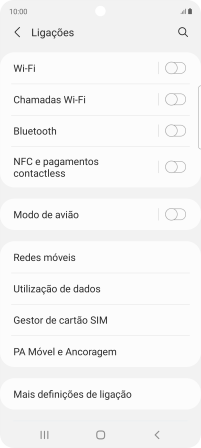

Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-36baf4b4-c4ba-45f0-9d1a-91b62e16fefc.png?width=202&height=448)

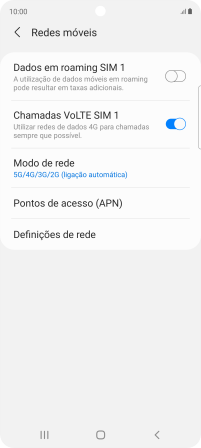

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-bf4cb06f-7c0a-48a3-99ce-5b1ed6c54f3b.png?width=202&height=448)
2. Estabeleça uma nova ligação de dados

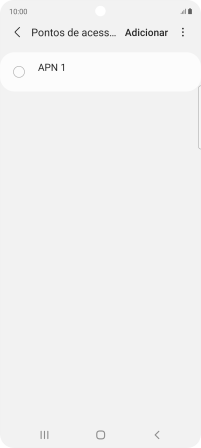

Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4f67b6aa-bc55-4ef6-87be-aa6cdea1fb16.png?width=202&height=448)
3. Introduza o nome da ligação de dados

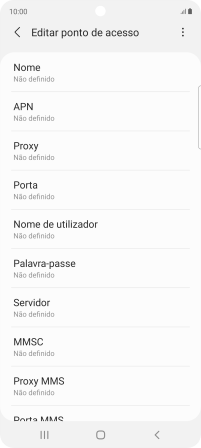

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ef4880d5-5084-4f0f-8eeb-121cdad6e4bd.png?width=202&height=448)

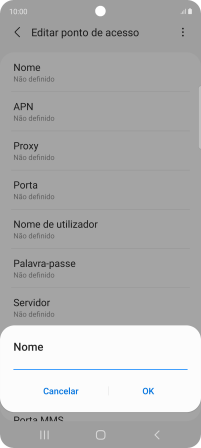

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d8fd79b2-65a1-4714-8387-9a8595f96809.png?width=202&height=448)
Vodafone Internet
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ef4880d5-5084-4f0f-8eeb-121cdad6e4bd.png?width=202&height=448)

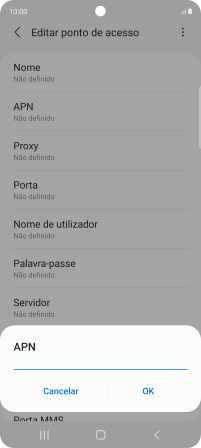

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2c643e9b-0ccc-4841-9d38-164cf35ec8fe.png?width=202&height=448)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ef4880d5-5084-4f0f-8eeb-121cdad6e4bd.png?width=202&height=448)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-bddb31c8-a25e-4cd6-acbe-6119f149d4ba.png?width=202&height=448)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ef4880d5-5084-4f0f-8eeb-121cdad6e4bd.png?width=202&height=448)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f13c4cc3-248a-4cf1-8fc0-80d9df663b30.png?width=202&height=448)
vodafone
7. Introduza o código de país

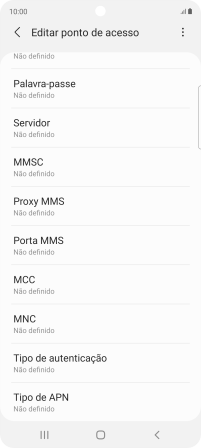

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f310a5e5-3605-4bf3-972a-7da8cb6c52ec.png?width=202&height=448)

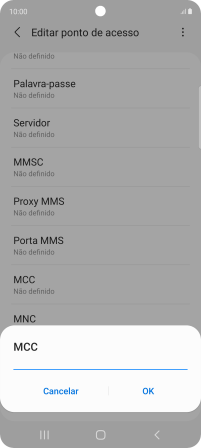

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c3f3598a-75fb-4fe2-ae1e-0fa06584b323.png?width=202&height=448)
268
8. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f310a5e5-3605-4bf3-972a-7da8cb6c52ec.png?width=202&height=448)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1cc82bea-9aec-4f7d-a6d0-75a1a8498499.png?width=202&height=448)
01
9. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f310a5e5-3605-4bf3-972a-7da8cb6c52ec.png?width=202&height=448)

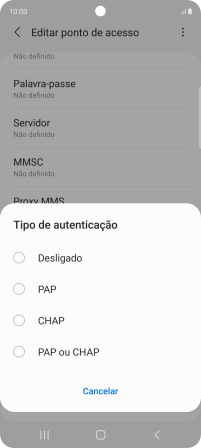

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ddb44a58-9ade-4a13-86ff-26a0ce3696bb.png?width=202&height=448)
10. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f310a5e5-3605-4bf3-972a-7da8cb6c52ec.png?width=202&height=448)

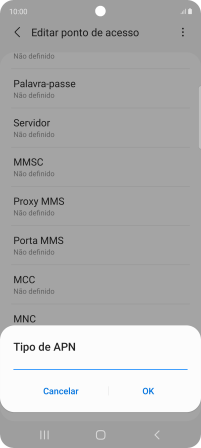

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6a0304fb-4409-4e54-9956-7ebe3183fc0c.png?width=202&height=448)
default
11. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f310a5e5-3605-4bf3-972a-7da8cb6c52ec.png?width=202&height=448)

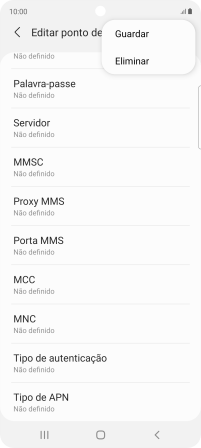

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-aab6e81c-c9b1-4d8d-9a98-7f5dab0735d3.png?width=202&height=448)

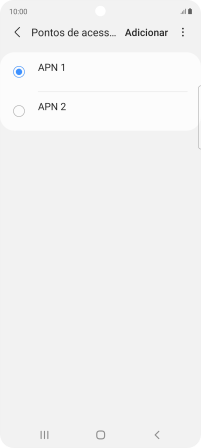

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-124c76dc-6ea2-40f6-87eb-f07ad5962939.png?width=202&height=448)
12. Volte ao ecrã inicial

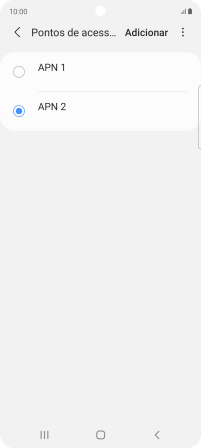

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-468ba701-b2a7-42e6-a8ab-9e50085dae62.png?width=202&height=448)
