1. Procure "Pontos de acesso (APN)"

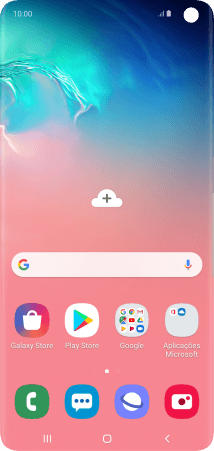

Deslize o dedo para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2a1554ab-6fc2-4464-8da1-f978f98a5388.png?width=214&height=454)

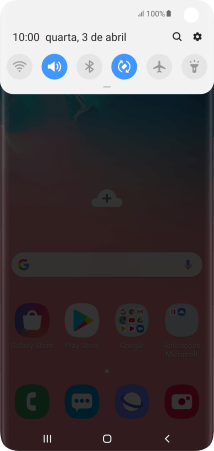

Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-05bf1e8e-6a77-4ebd-9c43-c29ebd542736.png?width=214&height=454)

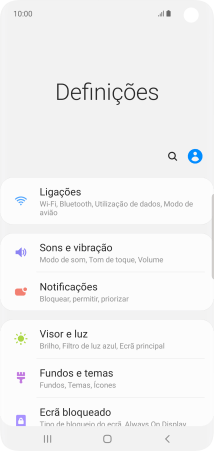

Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5acd8fb3-ce1e-44c6-ae91-1868964bf976.png?width=214&height=454)

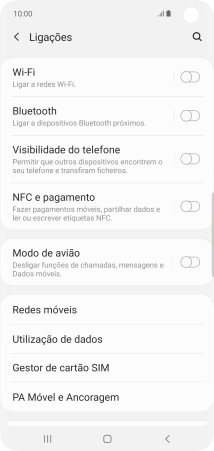

Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-638c11ed-f773-46a7-9fa6-7eb9c573d807.png?width=214&height=454)

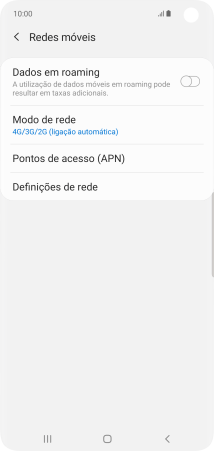

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-406b33df-1eed-4334-aab5-eec76a4b65c8.png?width=214&height=454)
2. Estabeleça uma nova ligação de dados

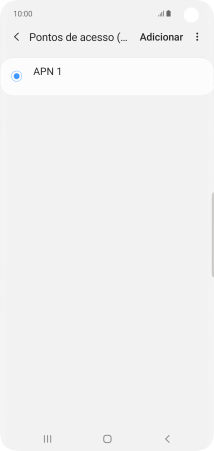

Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-501eaad1-bd04-4e70-9b14-68a49ec24094.png?width=214&height=454)

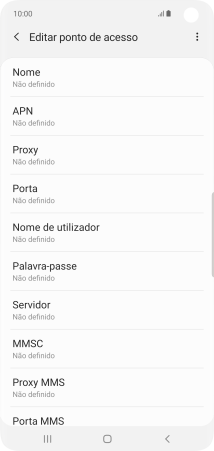

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15038c5a-858f-47ea-8333-e5069a292be6.png?width=214&height=454)

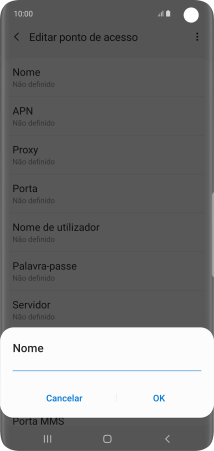

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9b89bdd5-9782-447a-9424-f519b37f3e66.png?width=214&height=454)
Vodafone MMS
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15038c5a-858f-47ea-8333-e5069a292be6.png?width=214&height=454)

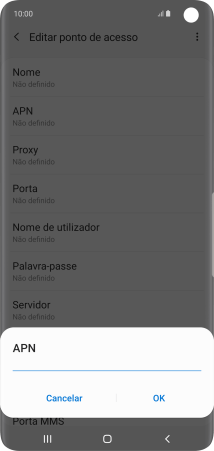

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-da67e49c-0ed6-4333-87ee-3ae6184f3c9a.png?width=214&height=454)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15038c5a-858f-47ea-8333-e5069a292be6.png?width=214&height=454)

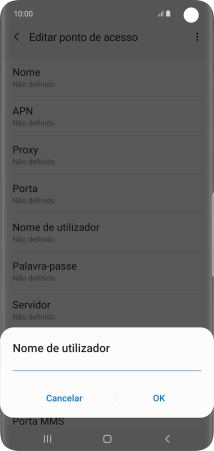

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-028ac152-4125-43a4-9ae7-0b171701c1cf.png?width=214&height=454)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15038c5a-858f-47ea-8333-e5069a292be6.png?width=214&height=454)

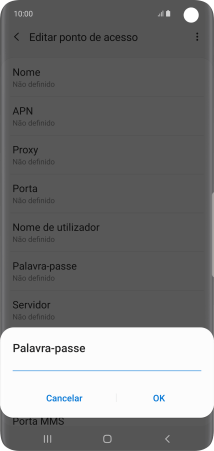

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a5aa6df5-5866-4e75-86e2-e61123134952.png?width=214&height=454)
vodafone
6. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15038c5a-858f-47ea-8333-e5069a292be6.png?width=214&height=454)

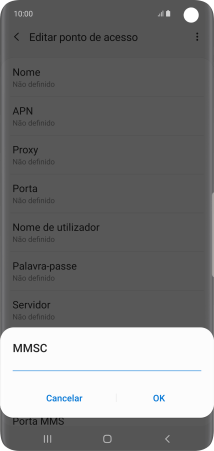

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-144b3f19-8a8c-439e-807a-a0d378bc392a.png?width=214&height=454)
http://mms.vodafone.pt/servlets/mms
7. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15038c5a-858f-47ea-8333-e5069a292be6.png?width=214&height=454)

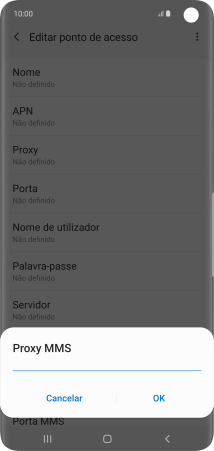

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6384fec2-8208-499c-a4c9-4eb3fa222350.png?width=214&height=454)
iproxy.vodafone.pt
8. Introduza o número da porta

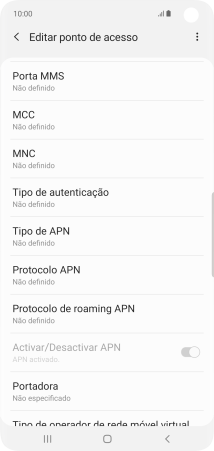

Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7166cef-2a99-4845-ac9d-d72e91204474.png?width=214&height=454)

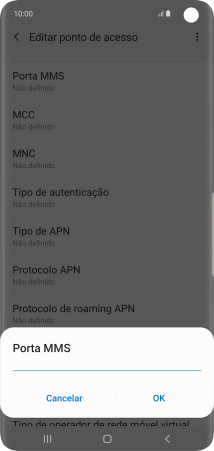

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fd73d3c5-b1bc-448a-9c22-ad5bb7f38134.png?width=214&height=454)
80
9. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7166cef-2a99-4845-ac9d-d72e91204474.png?width=214&height=454)

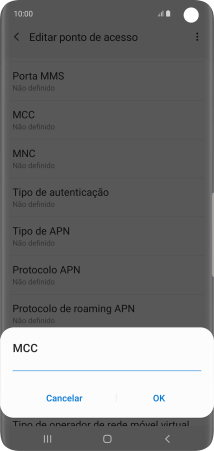

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5cf97530-d24e-4889-a72d-b05cd0f638ff.png?width=214&height=454)
268
10. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7166cef-2a99-4845-ac9d-d72e91204474.png?width=214&height=454)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3acff5de-1ff4-48b1-a16e-035869fa03ba.png?width=214&height=454)
01
11. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7166cef-2a99-4845-ac9d-d72e91204474.png?width=214&height=454)

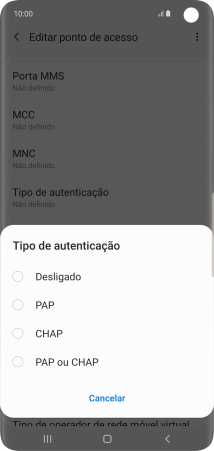

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-06396254-e509-4461-a7d2-930ec9593718.png?width=214&height=454)
12. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7166cef-2a99-4845-ac9d-d72e91204474.png?width=214&height=454)

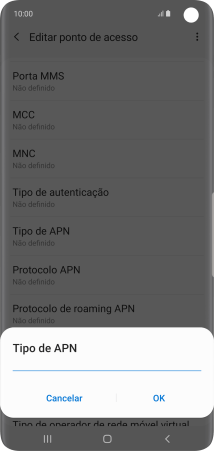

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-902e25b2-7da2-4477-8d24-ac825d6d08df.png?width=214&height=454)
mms
13. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7166cef-2a99-4845-ac9d-d72e91204474.png?width=214&height=454)

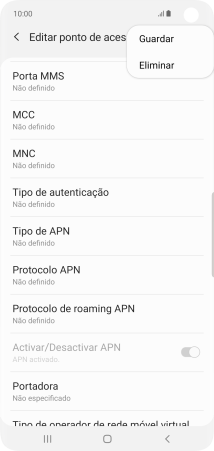

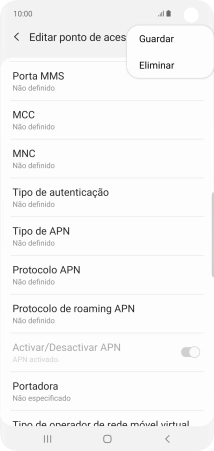

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4b28267a-4c52-4f56-bf29-746f7a18e99c.png?width=214&height=454)
14. Volte ao ecrã inicial

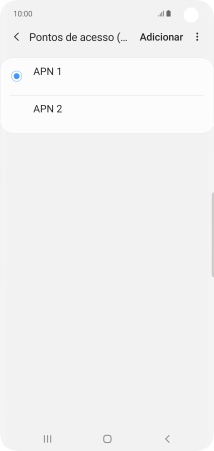

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cd15b317-b340-40f7-83a8-57076e264f86.png?width=214&height=454)
