1. Procure "Pontos de acesso (APN)"
Deslize o dedo para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d040da0f-b691-4ddb-b8ac-d09497b97360.png?width=202&height=418)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-49bb20f4-215c-48cd-b67e-b234d5455107.png?width=202&height=418)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f7dd9aa8-2a1e-45d2-93db-e31da13136b1.png?width=202&height=418)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-939ec539-1786-4541-83cd-fab505c28ce6.png?width=202&height=418)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-519e9fb6-424f-4288-8c44-1353ec7d6d8a.png?width=202&height=418)
2. Estabeleça uma nova ligação de dados
Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f0f52ff3-4b4a-49d0-ada5-6122a23ab3dc.png?width=202&height=418)
Prima ADICIONAR.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f0f52ff3-4b4a-49d0-ada5-6122a23ab3dc.png?width=202&height=418)
Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be17cf8c-34fe-444e-ad37-0cdafd007c9c.png?width=202&height=418)
Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fb1a5c4c-edef-4532-bd50-6cbe5ee7a682.png?width=202&height=418)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be17cf8c-34fe-444e-ad37-0cdafd007c9c.png?width=202&height=418)

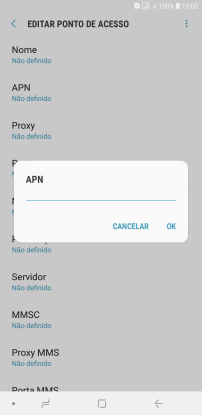

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ce3c13fd-51b8-4b8e-9188-826bdedfd9d3.png?width=202&height=418)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be17cf8c-34fe-444e-ad37-0cdafd007c9c.png?width=202&height=418)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-731008d5-a7f7-4b9f-b113-830461901a45.png?width=202&height=418)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be17cf8c-34fe-444e-ad37-0cdafd007c9c.png?width=202&height=418)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1246bd6e-56a7-4007-ba0e-73b06ec8cc13.png?width=202&height=418)
vodafone
6. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-50f8f1f1-b3ef-4651-b928-5e558d4dfd8a.png?width=202&height=418)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d7aad6be-2a34-4278-ba4f-ac06b3cdc7a5.png?width=202&height=418)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-50f8f1f1-b3ef-4651-b928-5e558d4dfd8a.png?width=202&height=418)

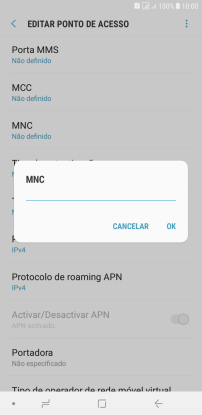

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0245357d-10b0-4bfb-8652-997c98d1f0de.png?width=202&height=418)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-50f8f1f1-b3ef-4651-b928-5e558d4dfd8a.png?width=202&height=418)

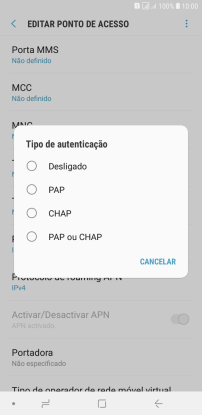

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-62e22150-78a5-41a2-bb1f-0dad002488b2.png?width=202&height=418)
9. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-50f8f1f1-b3ef-4651-b928-5e558d4dfd8a.png?width=202&height=418)
Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ae60e801-7e90-46b0-91c3-3e7ed827e083.png?width=202&height=418)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-50f8f1f1-b3ef-4651-b928-5e558d4dfd8a.png?width=202&height=418)
Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-971cdb16-a6f4-429b-bb15-d891658a081d.png?width=202&height=418)
Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b7bf653f-c9ad-42c6-89e6-ffc0876604ab.png?width=202&height=418)
11. Volte ao ecrã inicial

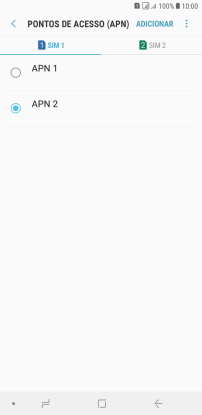

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2ec60677-9b8f-4040-9ef5-fe8c77e073f7.png?width=202&height=418)
