1. Procure "Pontos de acesso (APN)"
Deslize o dedo para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-68a1fbbb-af75-481a-abae-ceba2b4b0ecc.png?width=198&height=410)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e85c389f-f2ff-4292-9bbc-79f3d60a4f0e.png?width=198&height=410)

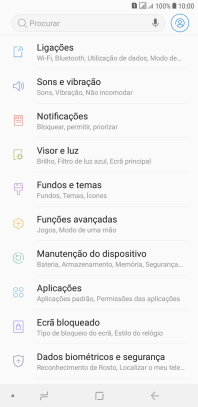

Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8fc12797-847d-412f-9167-28e7c1f3ee86.png?width=198&height=410)

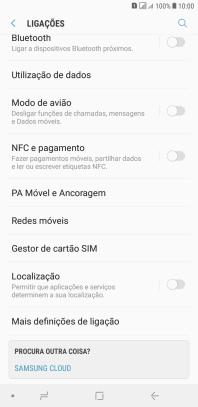

Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-32d4db43-21bb-40bb-9e98-24a1e5ae10ba.png?width=198&height=410)

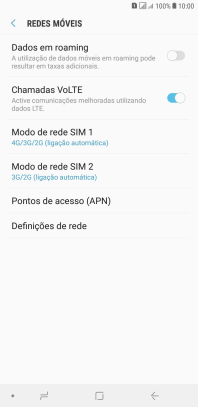

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6c9f72ae-180f-4560-9c82-1c6a621f5c36.png?width=198&height=410)
2. Estabeleça uma nova ligação de dados

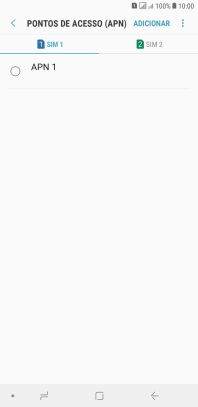

Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-22683d09-3a60-4f62-9b60-eb339ed8a1a9.png?width=198&height=410)
Prima ADICIONAR.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-22683d09-3a60-4f62-9b60-eb339ed8a1a9.png?width=198&height=410)

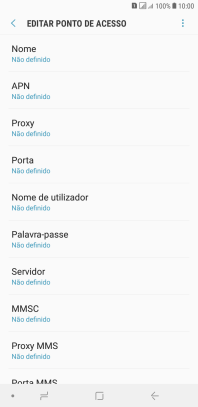

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1c30dc4c-65c4-480b-a068-9ffe7f10a1f7.png?width=198&height=410)

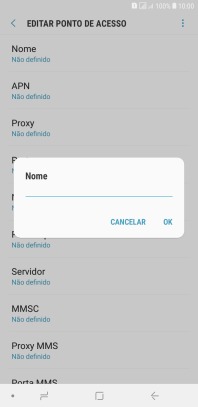

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-16cd79d1-b829-45d5-8718-f0aa758a0450.png?width=198&height=410)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1c30dc4c-65c4-480b-a068-9ffe7f10a1f7.png?width=198&height=410)

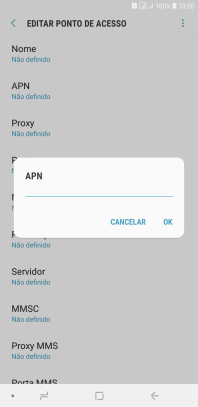

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-816a25be-bbd9-407a-988d-d601663daae0.png?width=198&height=410)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1c30dc4c-65c4-480b-a068-9ffe7f10a1f7.png?width=198&height=410)

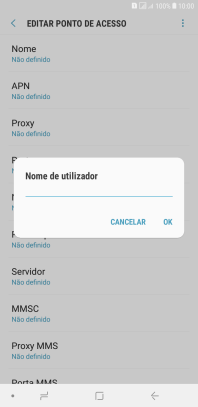

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-855df623-d450-475f-851f-a9136c85c276.png?width=198&height=410)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1c30dc4c-65c4-480b-a068-9ffe7f10a1f7.png?width=198&height=410)

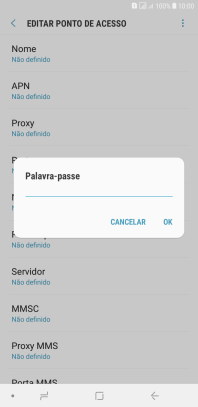

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7f6ad87d-eb28-4c34-bee9-9c8837f727c0.png?width=198&height=410)
vodafone
6. Introduza o código de país

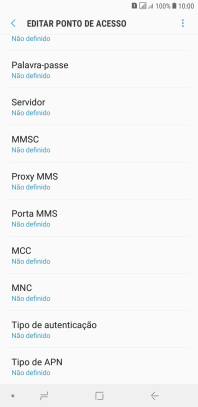

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff6756a9-a240-4685-a184-17cacdbdda81.png?width=198&height=410)

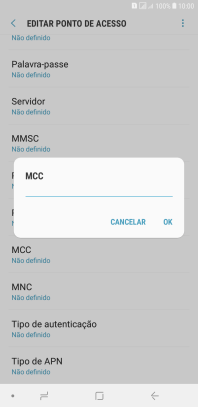

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8c139d65-f3fe-43b5-9ca0-c55a1360c504.png?width=198&height=410)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff6756a9-a240-4685-a184-17cacdbdda81.png?width=198&height=410)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-34239cef-e060-4fa7-b46f-79749f920d65.png?width=198&height=410)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff6756a9-a240-4685-a184-17cacdbdda81.png?width=198&height=410)

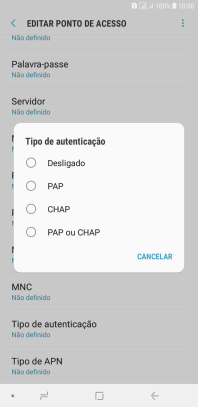

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5c393e2b-a78a-4d02-88a1-665d0581d415.png?width=198&height=410)
9. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff6756a9-a240-4685-a184-17cacdbdda81.png?width=198&height=410)

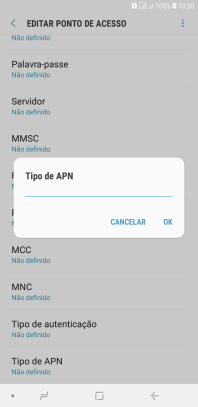

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-618ec92b-8664-4494-b2db-a6f823fd78c9.png?width=198&height=410)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff6756a9-a240-4685-a184-17cacdbdda81.png?width=198&height=410)

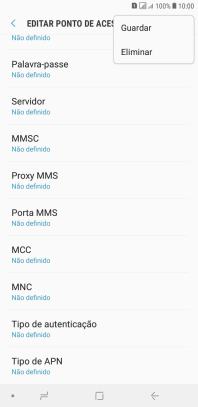

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8c3c9b55-874a-4bd0-ad77-aafa3b5e2f56.png?width=198&height=410)
Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4c8624f2-d33c-46a6-a7a6-f4c2b1573a86.png?width=198&height=410)

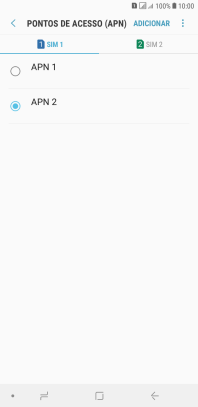

11. Volte ao ecrã inicial
Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e47db4fb-3823-4420-83e8-77c82c5ee449.png?width=198&height=410)
