1. Procure "Pontos de acesso (APN)”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b5d122de-330b-4d93-ad23-9f8fb958b143.png?width=202&height=452)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7d41dd19-b53e-46eb-9fcd-7d6b30b6d976.png?width=202&height=452)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-271b607d-911e-4d8e-9089-142512263d1d.png?width=202&height=452)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1fac61a1-641b-49a6-a72e-55ccd1824763.png?width=202&height=452)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e2735acc-ca2a-4639-81ec-f8249c874f37.png?width=202&height=452)
2. Estabeleça uma nova ligação de dados

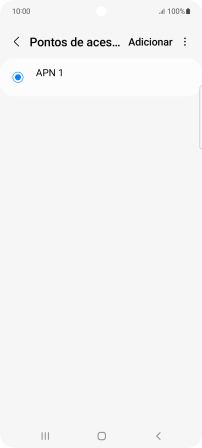

Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-57ad916e-2a42-4bec-97f8-c476824fbe36.png?width=202&height=452)
3. Introduza o nome da ligação de dados

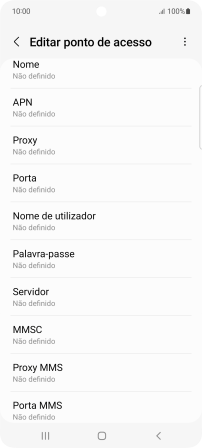

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)

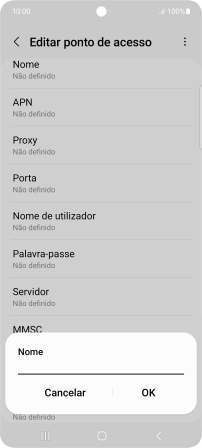

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5d40344f-86a0-4f66-b02d-887e9cbf7042.png?width=202&height=452)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)

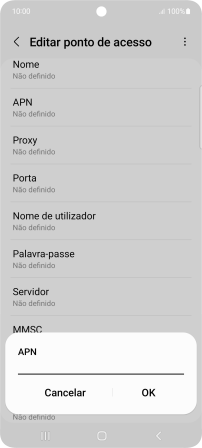

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f5b0627e-f39b-4af3-9cdb-cf8f536ed0c2.png?width=202&height=452)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)

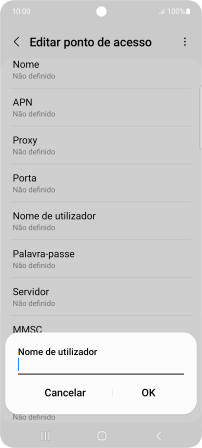

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-889db3ee-73dd-435b-8dbf-0637bcbd781f.png?width=202&height=452)
vodafone
6. Introduza a palavra-passe
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)

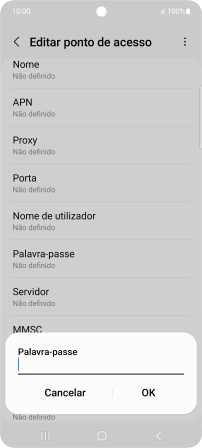

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5b095149-ff33-4b9b-8ab4-43c0b9a7c082.png?width=202&height=452)
vodafone
7. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)

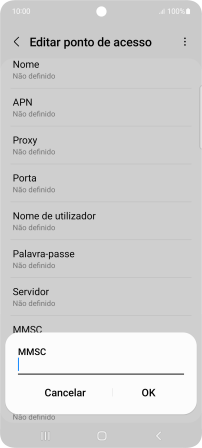

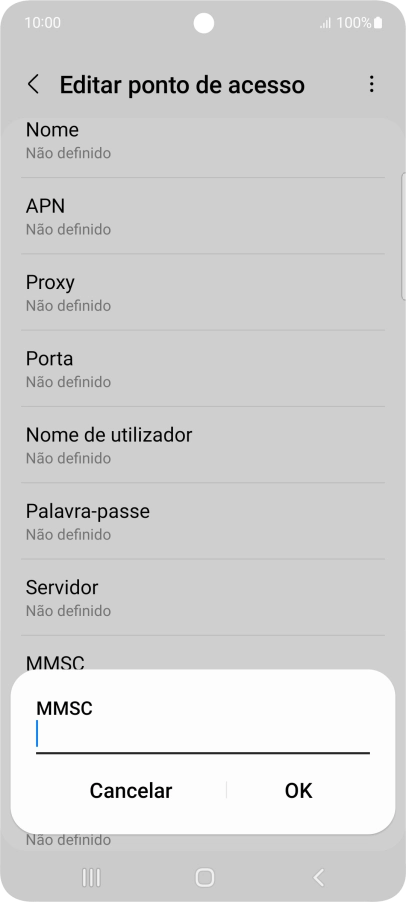

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e27997e1-b996-418a-964f-4e8b145d38e5.png?width=202&height=452)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)

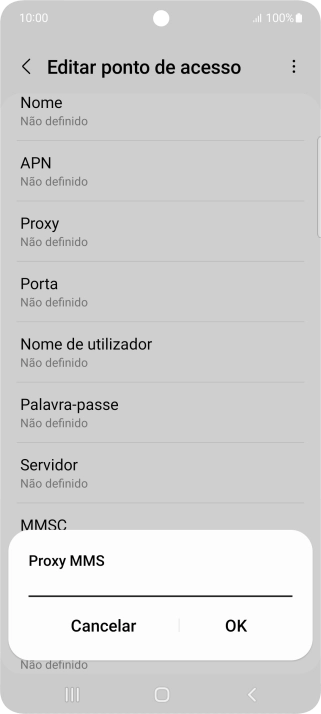

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-857c3548-55ef-4c0b-9f79-5af23da01d2a.png?width=202&height=452)
iproxy.vodafone.pt
9. Introduza o número da porta

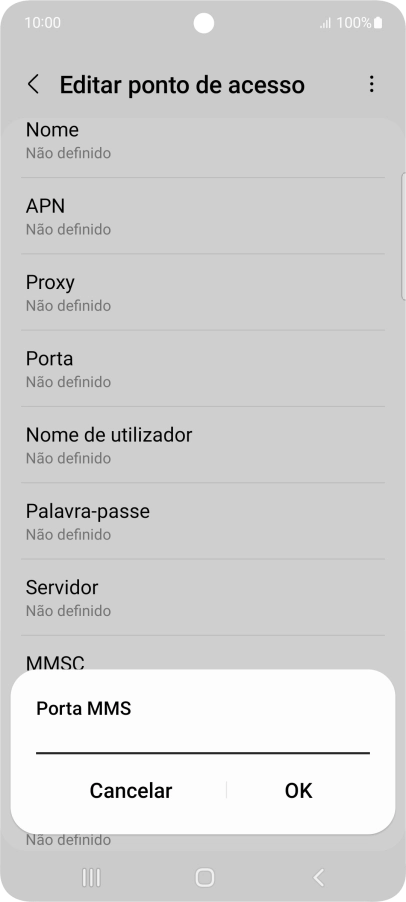

Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-983bb475-3786-421a-b13f-8f8ef2744ba0.png?width=202&height=452)
Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-78494eee-658c-4d00-9e4b-635c291ea1c0.png?width=202&height=452)
80
10. Introduza o código de país

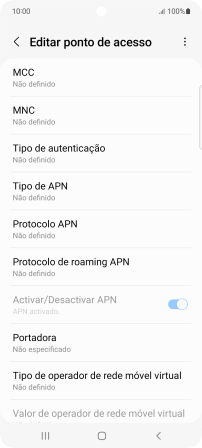

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-635ba105-dd75-47f5-a492-fe38d7fd0744.png?width=202&height=452)

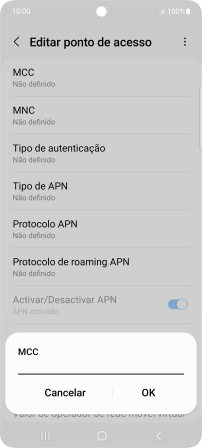

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fd4e4591-f206-4e27-9e4b-1a15a43e2da5.png?width=202&height=452)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-635ba105-dd75-47f5-a492-fe38d7fd0744.png?width=202&height=452)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-055bf123-0862-4b06-bb50-dc27ec689419.png?width=202&height=452)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-635ba105-dd75-47f5-a492-fe38d7fd0744.png?width=202&height=452)

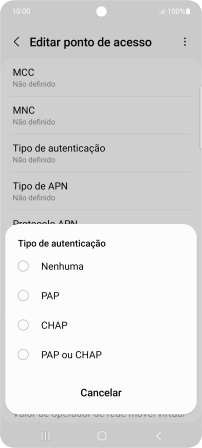

Prima Nenhuma.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7cb960a8-91df-4cad-bf94-95691ca121ed.png?width=202&height=452)
13. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-635ba105-dd75-47f5-a492-fe38d7fd0744.png?width=202&height=452)

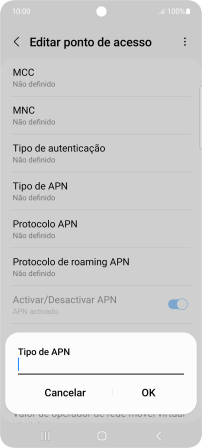

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3f6672e3-fc49-4d54-80c5-663ac8509929.png?width=202&height=452)
mms
14. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-635ba105-dd75-47f5-a492-fe38d7fd0744.png?width=202&height=452)

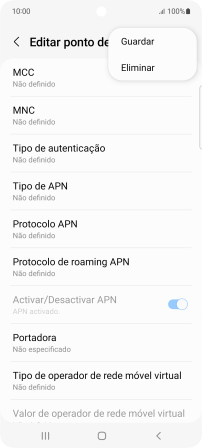

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a096b70f-089a-4b12-ad87-b3362b55a882.png?width=202&height=452)
15. Volte ao ecrã inicial

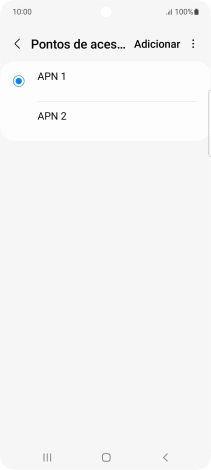

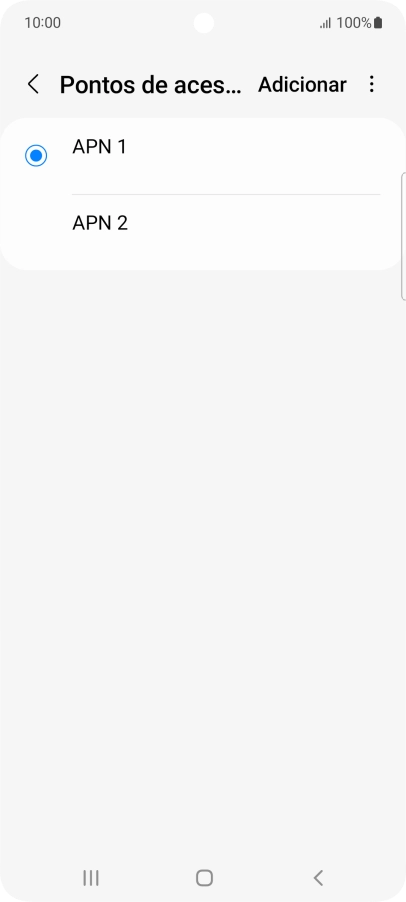

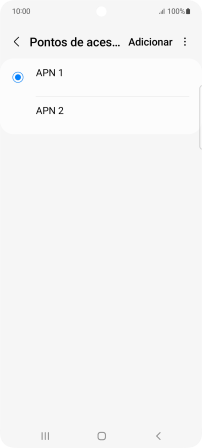

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-484f2ec7-54fc-4ce5-b280-5311ca1c831d.png?width=202&height=452)
