1. Procure "Pontos de acesso (APN)”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a27875e6-0a8b-4c26-98fc-80f9cde70180.png?width=200&height=448)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-da81d555-c47c-4530-8fe3-d689ececb770.png?width=200&height=448)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6fbe88a0-d2a6-44ad-a6cc-83532be6f47e.png?width=200&height=448)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5114c5bd-a8a9-46bf-9e8b-a980d312212b.png?width=200&height=448)

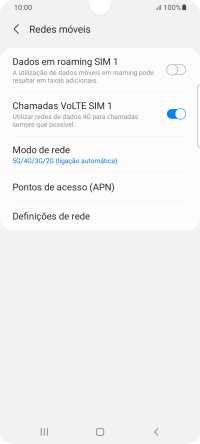

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0aaa6ff9-f9b2-428d-863e-dfc3f86731bd.png?width=200&height=448)
2. Estabeleça uma nova ligação de dados

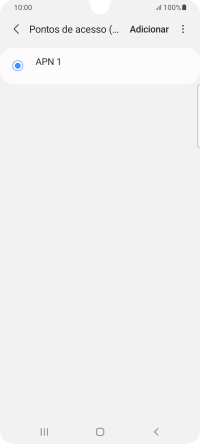

Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-89406582-4b92-44f8-9fcb-6b58b15cc959.png?width=200&height=448)
3. Introduza o nome da ligação de dados

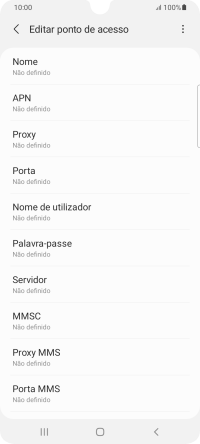

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)

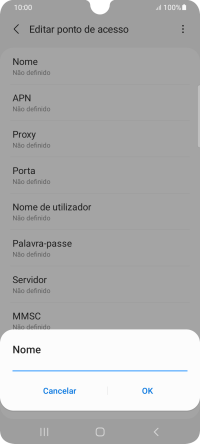

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0affe43a-dac8-4af1-a776-1a86c4e21cd8.png?width=200&height=448)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)

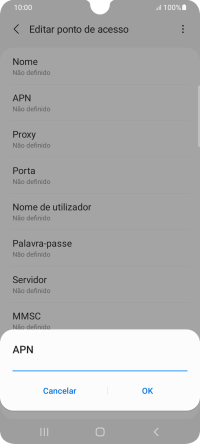

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-98e2701e-04cd-46b7-bd37-b44de38bbbdf.png?width=200&height=448)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)

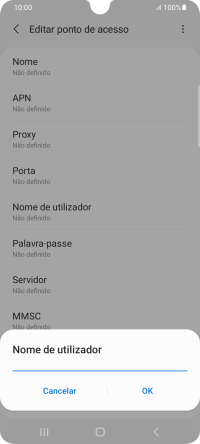

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-81d56976-29d5-46dc-8b9f-db93407da7ed.png?width=200&height=448)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)

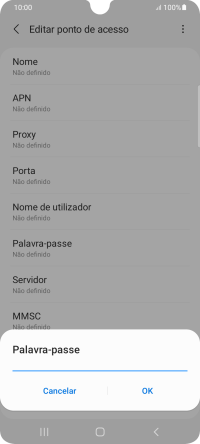

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a520b461-0dfb-42b7-b2b0-e2e9d0bbd866.png?width=200&height=448)
vodafone
7. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)

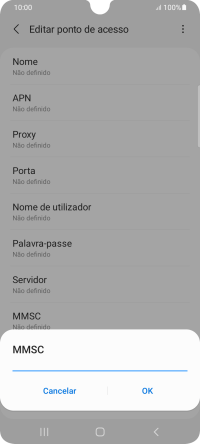

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7acb76da-e5cb-4805-9577-54e08dfff983.png?width=200&height=448)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)

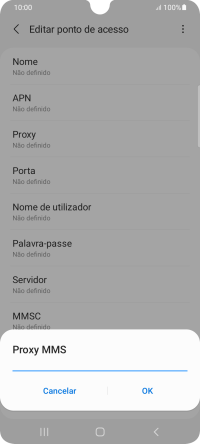

Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2f456846-1883-47d6-85f7-0ae9a852386c.png?width=200&height=448)
iproxy.vodafone.pt
9. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b62a423-f075-47b1-82f5-f601df3d4df3.png?width=200&height=448)
Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7f5d7ba0-9520-4e07-af19-37979d08e226.png?width=200&height=448)
80
10. Introduza o código de país

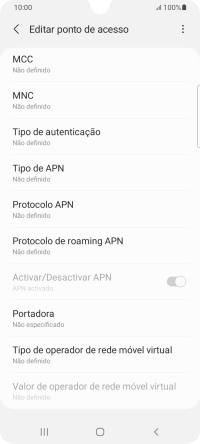

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0dd3ad59-f375-4b44-9c62-00c28c764ebd.png?width=200&height=448)

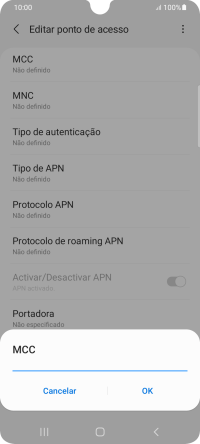

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-01f105ab-babd-4908-87e1-201b809e23d9.png?width=200&height=448)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0dd3ad59-f375-4b44-9c62-00c28c764ebd.png?width=200&height=448)

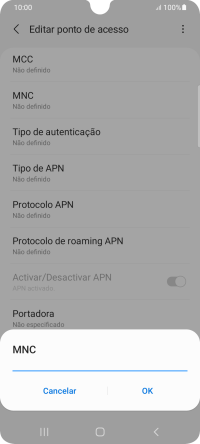

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fb5156a7-2c93-4cd6-a14d-18b130279ced.png?width=200&height=448)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0dd3ad59-f375-4b44-9c62-00c28c764ebd.png?width=200&height=448)

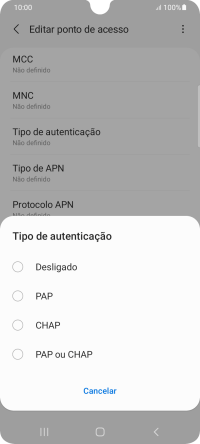

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3974a789-df55-4100-aa5e-f4f6f3b07afa.png?width=200&height=448)
13. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0dd3ad59-f375-4b44-9c62-00c28c764ebd.png?width=200&height=448)

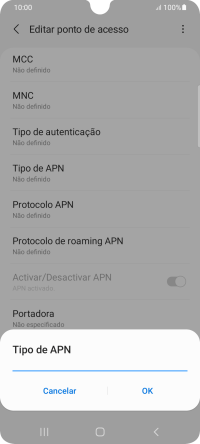

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8e63acee-7b01-48ae-aa25-951e5b9f946c.png?width=200&height=448)
mms
14. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0dd3ad59-f375-4b44-9c62-00c28c764ebd.png?width=200&height=448)

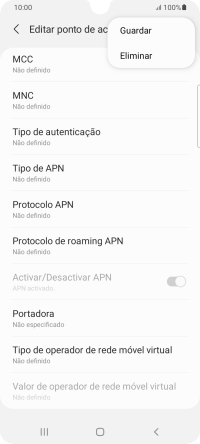

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-fd84606b-488c-457f-97e1-7b267ee71a64.png?width=200&height=448)
15. Volte ao ecrã inicial

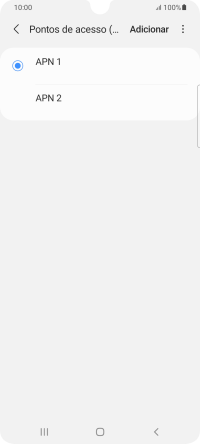

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8e5b3e70-5e57-4e49-a888-17f45fc5e12a.png?width=200&height=448)
