1. Procure "Pontos de acesso (APN)"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-42701d60-3f3e-4f64-9e03-4e1c8f605e86.png?width=208&height=450)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d6450c9d-f220-4051-b9a7-501d0946afbc.png?width=208&height=450)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0e3ad713-3237-4f93-b2c2-e32ecc423863.png?width=208&height=450)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f7e467cb-6911-4bd8-95c4-f0874804975f.png?width=208&height=450)
Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cee68b4c-0e12-4248-b575-896610d2da17.png?width=208&height=450)
2. Estabeleça uma nova ligação de dados

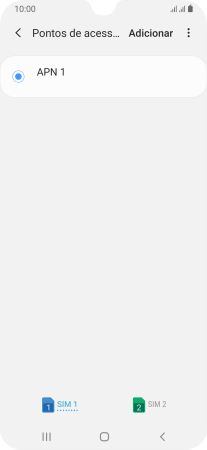

Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff92c41d-82bd-4638-bb71-31211fe5168f.png?width=208&height=450)
Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ff92c41d-82bd-4638-bb71-31211fe5168f.png?width=208&height=450)

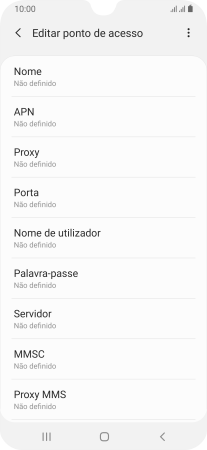

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f33df4f1-d8fc-4088-9b65-444919921d21.png?width=208&height=450)

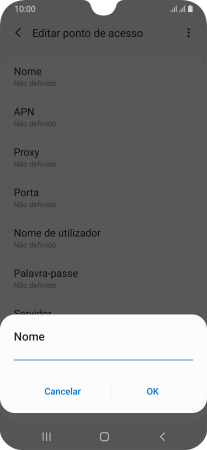

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-27f973d6-fe7f-4bba-84a9-7abea0b7e4cf.png?width=208&height=450)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f33df4f1-d8fc-4088-9b65-444919921d21.png?width=208&height=450)

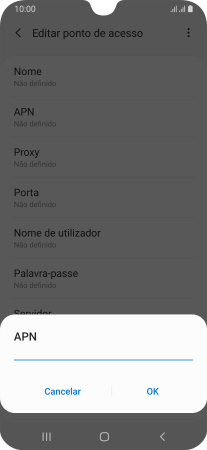

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5b2c8b78-c906-471f-9989-5fb43af0491c.png?width=208&height=450)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f33df4f1-d8fc-4088-9b65-444919921d21.png?width=208&height=450)

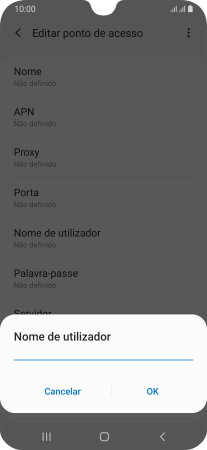

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-eeb1f9c1-449e-4c99-bbef-a7f2f7158a26.png?width=208&height=450)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f33df4f1-d8fc-4088-9b65-444919921d21.png?width=208&height=450)

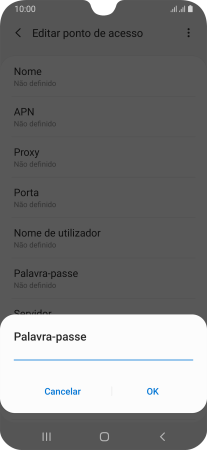

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-eeb1e884-de46-44c5-ba9d-a798cfb98436.png?width=208&height=450)
vodafone
6. Introduza o código de país

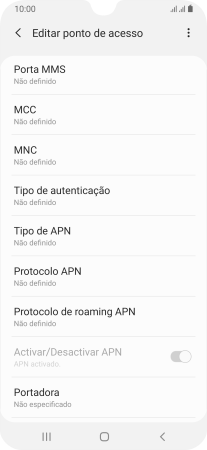

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-46790386-9cad-4b33-bb19-0a7509791a9a.png?width=208&height=450)

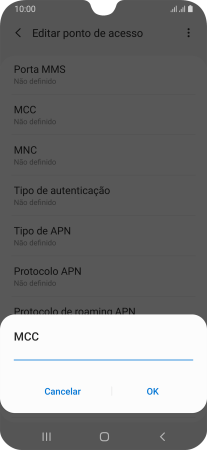

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a737d58f-308a-447d-8ce1-e592d8c46bd8.png?width=208&height=450)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-46790386-9cad-4b33-bb19-0a7509791a9a.png?width=208&height=450)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-eee8feb8-ca1b-415d-888b-cc20c6693f7d.png?width=208&height=450)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-46790386-9cad-4b33-bb19-0a7509791a9a.png?width=208&height=450)

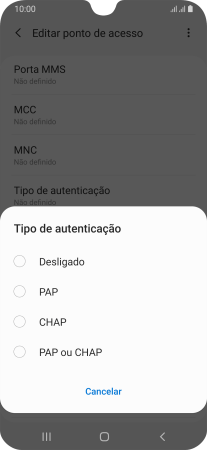

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-805d1c6c-d3b2-4384-850a-876c45a77891.png?width=208&height=450)
9. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-46790386-9cad-4b33-bb19-0a7509791a9a.png?width=208&height=450)

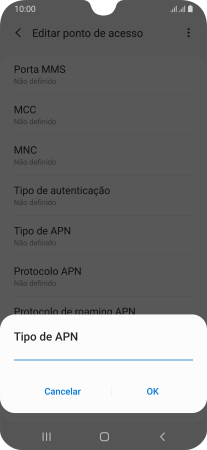

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0ddbb308-e5c3-42b1-9e18-fae7e29536f6.png?width=208&height=450)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-46790386-9cad-4b33-bb19-0a7509791a9a.png?width=208&height=450)

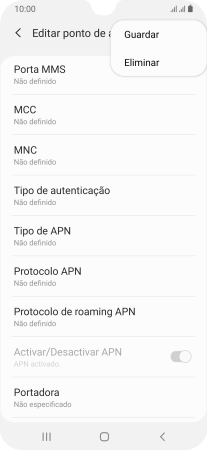

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-134f0294-5a1a-4ffe-93fc-8b6cc872252e.png?width=208&height=450)

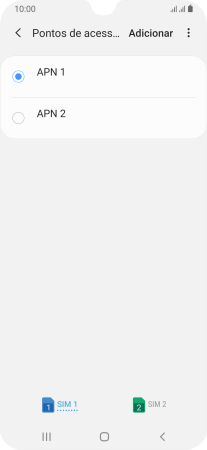

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b6ec1c7-cf33-4e1b-8fda-8eac3a23b3d8.png?width=208&height=450)
11. Volte ao ecrã inicial

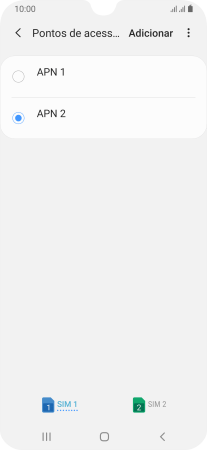

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a4532998-308d-4eb2-a526-1c127a85ba45.png?width=208&height=450)
