1. Procure "Pontos de acesso (APN)”
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3b7a9c28-2d63-4e06-bb22-89fbc2b85c4b.png?width=198&height=440)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ae4d6451-2244-4002-b4c5-8417b0189770.png?width=198&height=440)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-eb220d63-08e4-4348-b8fc-e3b82706c89c.png?width=198&height=440)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a1742497-3f94-4c1b-abd3-f0b772c47981.png?width=198&height=440)

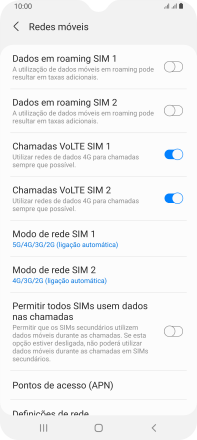

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6712b8a9-b24b-467f-b1e9-5c2a02bf84b8.png?width=198&height=440)
2. Estabeleça uma nova ligação de dados

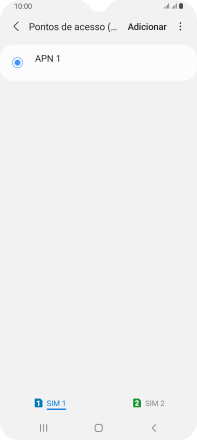

Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cfdb3b56-147f-4467-8b46-faa59eb95145.png?width=198&height=440)
Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cfdb3b56-147f-4467-8b46-faa59eb95145.png?width=198&height=440)
3. Introduza o nome da ligação de dados

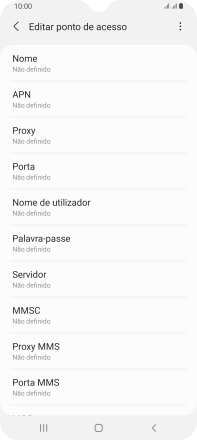

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)

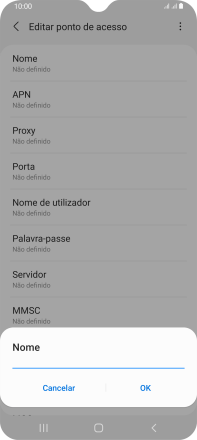

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-007ae351-ef8e-43e1-9990-ad15effd80d9.png?width=198&height=440)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6743b811-1d93-42d1-8cc0-dc18af8ecb3e.png?width=198&height=440)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)

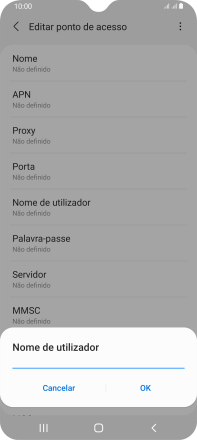

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-34503514-3fa7-41f0-b9a1-a6c92021c72f.png?width=198&height=440)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)

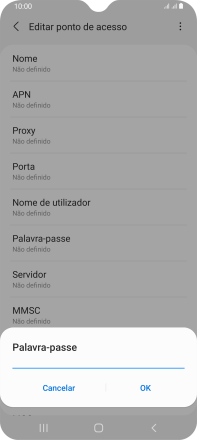

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-83a2a945-7478-4385-9fb4-ffc3c7801c0d.png?width=198&height=440)
vodafone
7. Introduza o centro de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)

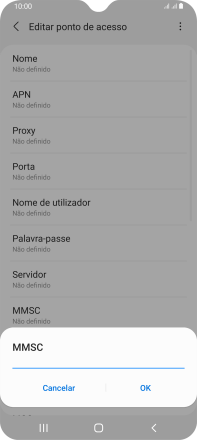

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-aa06488a-3d61-4e27-8c47-5475b50c0781.png?width=198&height=440)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)
Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c584406a-a499-4659-94b0-ec83c7b27fc3.png?width=198&height=440)
iproxy.vodafone.pt
9. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1d86e2cf-e3a1-4b9a-8910-449631e86325.png?width=198&height=440)
Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c8afbb8b-4419-42ad-84f4-e4c5dabc031f.png?width=198&height=440)
80
10. Introduza o código de país

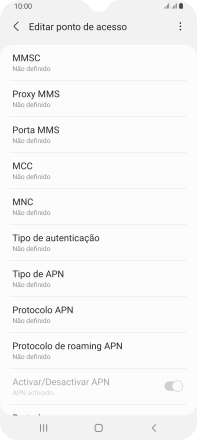

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-48302c5a-bf5f-41ce-b917-b3ddb2cedb94.png?width=198&height=440)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-86226673-29db-4e00-ab46-28c7a72ff837.png?width=198&height=440)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-48302c5a-bf5f-41ce-b917-b3ddb2cedb94.png?width=198&height=440)

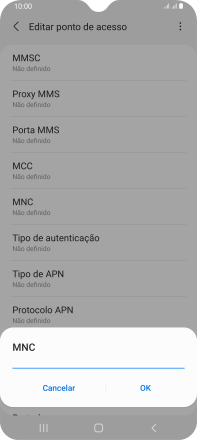

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d0ff0280-461c-4f2c-992b-b23e920cedbe.png?width=198&height=440)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-48302c5a-bf5f-41ce-b917-b3ddb2cedb94.png?width=198&height=440)

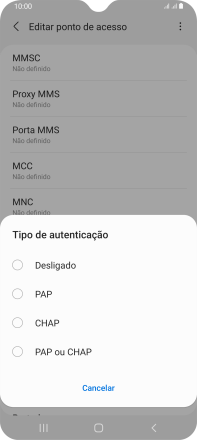

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1772c842-3351-4552-ac93-171bb4df5b18.png?width=198&height=440)
13. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-48302c5a-bf5f-41ce-b917-b3ddb2cedb94.png?width=198&height=440)

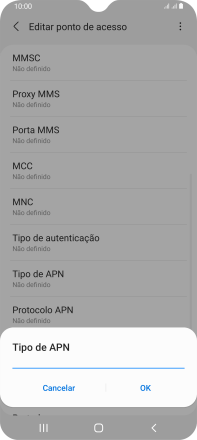

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-45e6b266-ed94-4a1c-b154-a0a674cfefca.png?width=198&height=440)
mms
14. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-48302c5a-bf5f-41ce-b917-b3ddb2cedb94.png?width=198&height=440)

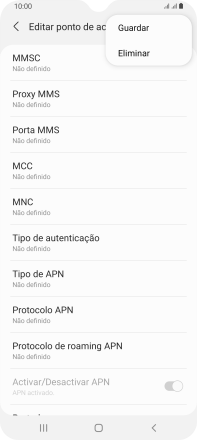

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-73735060-4377-40ac-b9f4-0e6c126a66fd.png?width=198&height=440)
15. Volte ao ecrã inicial

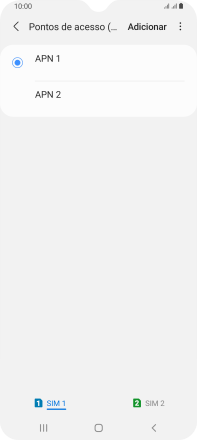

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-91a6ff4f-14b0-435b-8b07-d7a2ab50167d.png?width=198&height=440)
