1. Procure "Pontos de acesso (APN)"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5aed232d-212d-4669-bb3d-f60e0d2f5069.png?width=200&height=448)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-43f224f2-d6ff-4ece-90e0-5c3a90fcdc36.png?width=200&height=448)
Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b1f4779b-5d8c-449e-9ff7-73d88b110016.png?width=200&height=448)
Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a1799093-9670-4726-b342-15d54b202026.png?width=200&height=448)

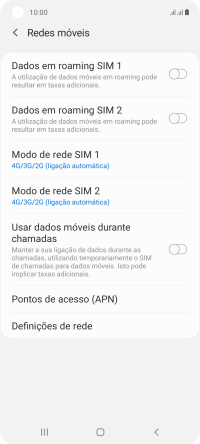

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-046c00fe-b515-4f27-97c7-0309cbcb7569.png?width=200&height=448)
2. Estabeleça uma nova ligação de dados

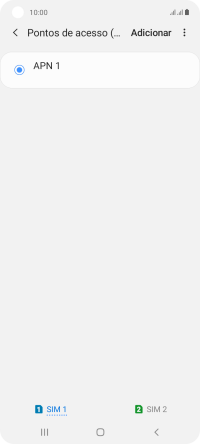

Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-94eece5e-a8e7-4de3-9e47-88bac1fbac71.png?width=200&height=448)
Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-94eece5e-a8e7-4de3-9e47-88bac1fbac71.png?width=200&height=448)

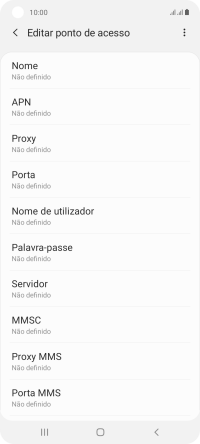

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-10032295-92b5-43da-9ac7-89531dadc711.png?width=200&height=448)

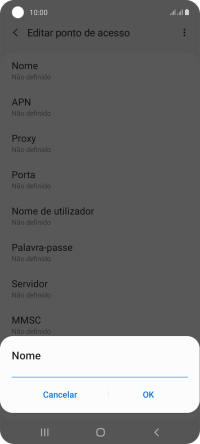

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-92f6b257-13a1-4d89-b632-1130fe878e1c.png?width=200&height=448)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-10032295-92b5-43da-9ac7-89531dadc711.png?width=200&height=448)

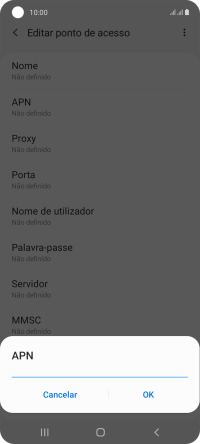

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9835c517-c7e3-4dba-9040-554d66bdd955.png?width=200&height=448)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-10032295-92b5-43da-9ac7-89531dadc711.png?width=200&height=448)

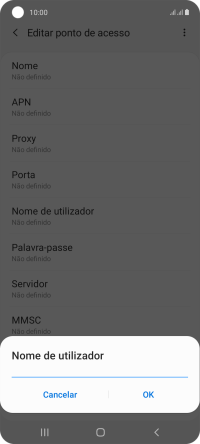

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6b393451-1116-4ddd-beda-a80d83d540d8.png?width=200&height=448)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-10032295-92b5-43da-9ac7-89531dadc711.png?width=200&height=448)

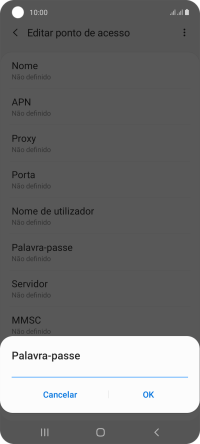

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b599b7d9-3b8d-46cd-9935-201c95fd0e0a.png?width=200&height=448)
vodafone
6. Introduza o código de país

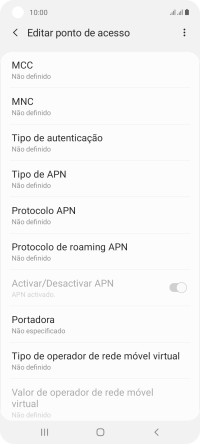

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7e0e7ea2-ad89-4336-9da5-3a5c9bec11c6.png?width=200&height=448)

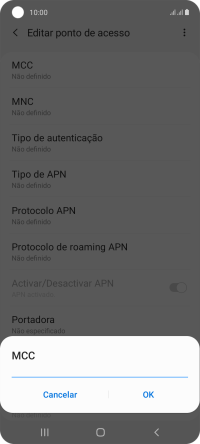

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f8c1c2df-6209-4b87-bdf1-53a889953837.png?width=200&height=448)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7e0e7ea2-ad89-4336-9da5-3a5c9bec11c6.png?width=200&height=448)

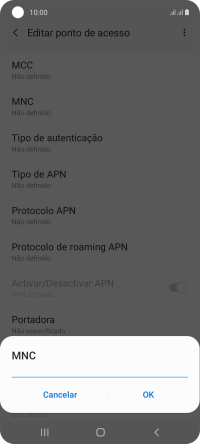

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d92e70d7-696b-4f9b-8397-fd8bad433822.png?width=200&height=448)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7e0e7ea2-ad89-4336-9da5-3a5c9bec11c6.png?width=200&height=448)

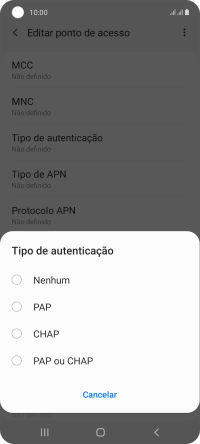

Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0a4426c3-c176-4aa8-a38d-e2b20dc71d33.png?width=200&height=448)
9. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7e0e7ea2-ad89-4336-9da5-3a5c9bec11c6.png?width=200&height=448)

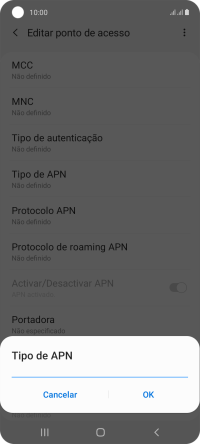

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-53cbe5e5-d5b9-4029-a572-3efa4bc18fda.png?width=200&height=448)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7e0e7ea2-ad89-4336-9da5-3a5c9bec11c6.png?width=200&height=448)

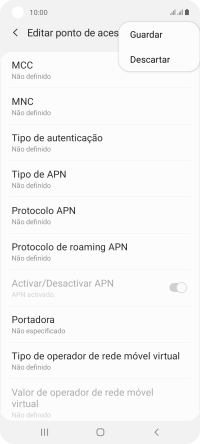

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-113b36ef-3b09-4483-87da-84135cdc7d84.png?width=200&height=448)

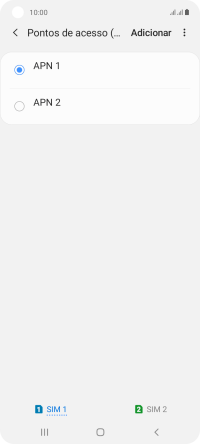

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ad64b83c-aea7-4e45-88b4-621790b13128.png?width=200&height=448)
11. Volte ao ecrã inicial

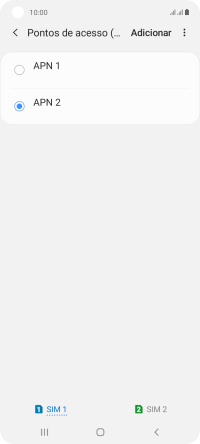

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e29f6d5a-6ac6-485d-b150-8a9b6001cb2f.png?width=200&height=448)
