1. Procure "Pontos de acesso (APN)"

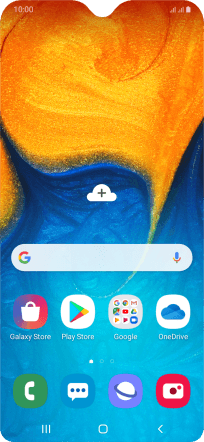

Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-69cf83ce-4514-47e4-b466-ce3507987410.png?width=204&height=442)

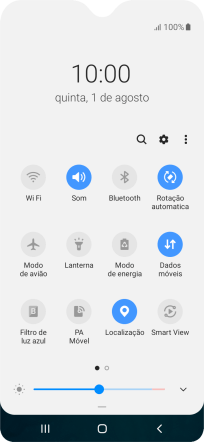

Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-597f2527-cd7a-4db0-97ae-8e3338459ba8.png?width=204&height=442)

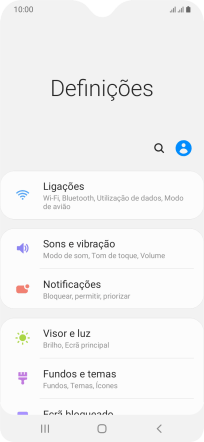

Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8a631c04-0056-43a2-a4fa-1214950addec.png?width=204&height=442)

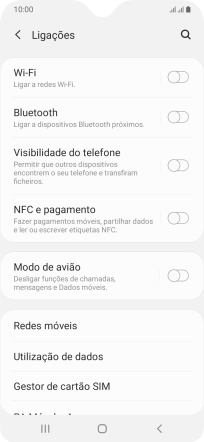

Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0aee90a0-c2f5-42c7-9dce-f0c0ff1a6e88.png?width=204&height=442)

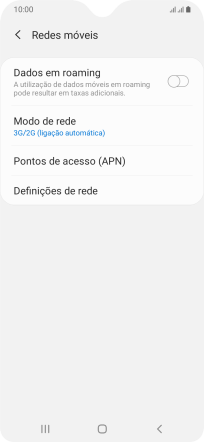

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-24a47916-6c80-49a4-ba65-f4a801a9c00a.png?width=204&height=442)
2. Estabeleça uma nova ligação de dados

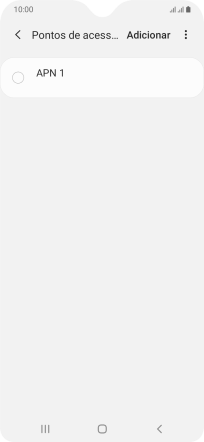

Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ca2bc2aa-185e-49e9-ac1b-ffffa76ef1b1.png?width=204&height=442)

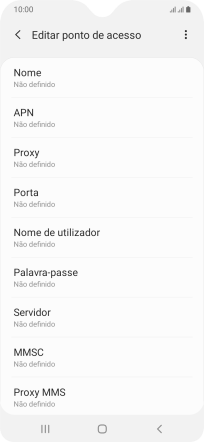

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c5559842-3956-4044-9b4f-313eb82c3053.png?width=204&height=442)

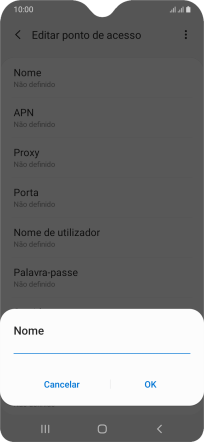

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-089b4357-4c8c-457b-9386-d6e82c6ff058.png?width=204&height=442)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c5559842-3956-4044-9b4f-313eb82c3053.png?width=204&height=442)

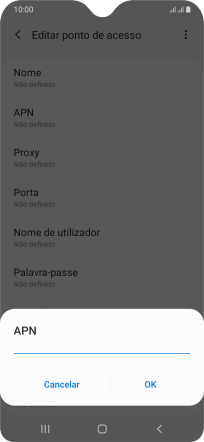

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7e21bf99-e80e-4bbe-ac7d-5251e7286c1c.png?width=204&height=442)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c5559842-3956-4044-9b4f-313eb82c3053.png?width=204&height=442)

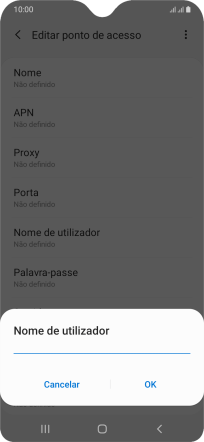

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9939c813-9a7d-4166-be01-393abe4d2be9.png?width=204&height=442)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c5559842-3956-4044-9b4f-313eb82c3053.png?width=204&height=442)

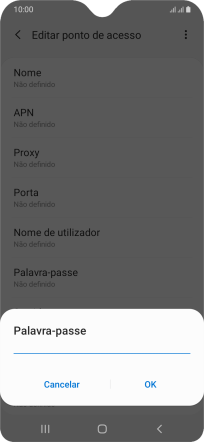

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-83a6ea39-3c76-49ae-aa6a-41233f1354f4.png?width=204&height=442)
vodafone
6. Introduza o código de país

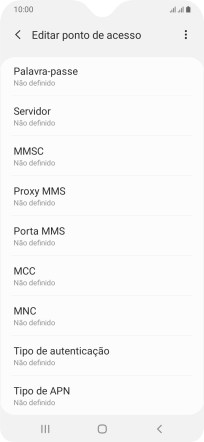

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6a0db0e7-f7bb-4893-85ec-0b52dcef7ee3.png?width=204&height=442)

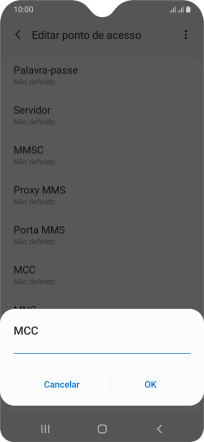

Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-f3b32cbe-02ab-4150-8e39-524f63d4610c.png?width=204&height=442)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6a0db0e7-f7bb-4893-85ec-0b52dcef7ee3.png?width=204&height=442)

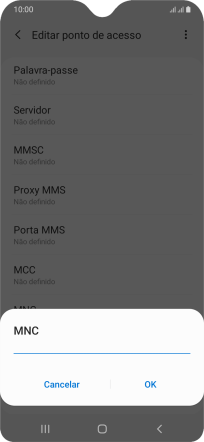

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15cf038b-520c-46fa-b3c7-f200fe6cdd2c.png?width=204&height=442)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6a0db0e7-f7bb-4893-85ec-0b52dcef7ee3.png?width=204&height=442)

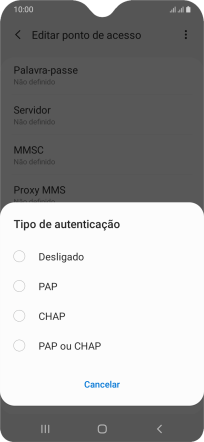

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ea2fa822-4277-44c2-9589-a186f578874b.png?width=204&height=442)
9. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6a0db0e7-f7bb-4893-85ec-0b52dcef7ee3.png?width=204&height=442)

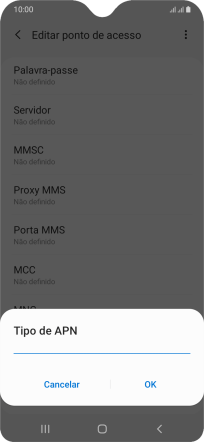

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8e70b994-7639-4606-b4ba-69571c80c59f.png?width=204&height=442)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6a0db0e7-f7bb-4893-85ec-0b52dcef7ee3.png?width=204&height=442)
Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-debdc41c-1752-4f64-8484-d7cb44ee2762.png?width=204&height=442)

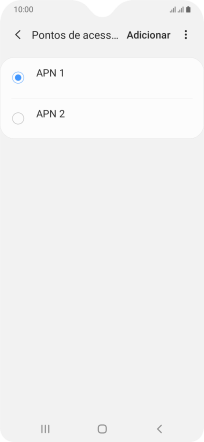

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7951cc4e-a91b-4341-b5b0-2072bf68988e.png?width=204&height=442)
11. Volte ao ecrã inicial

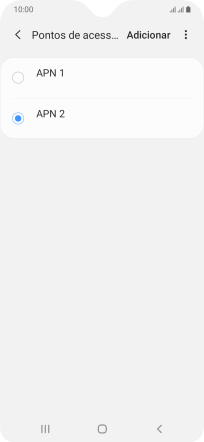

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4cfeb1e9-2d55-4ec6-a28a-945b591b6ee3.png?width=204&height=442)
