1. Procure "Pontos de acesso (APN)"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5a9faf67-243a-4d6f-b222-1fb19c927416.png?width=208&height=442)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-34151e0a-44f6-4e4f-94d0-d4df2fb1cd90.png?width=208&height=442)

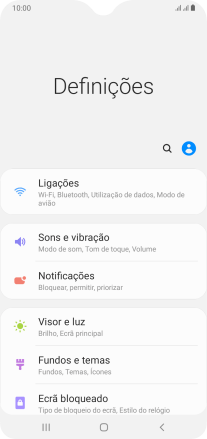

Prima Ligações.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e7eb0b09-31a4-4b17-9a08-c558db30237c.png?width=208&height=442)

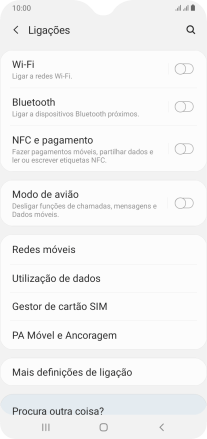

Prima Redes móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-75120328-df6e-45e4-8602-c9b902b9f307.png?width=208&height=442)

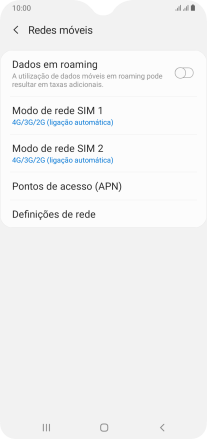

Prima Pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-6d4aa0c2-bd8f-4cec-9526-24f47e6a244a.png?width=208&height=442)
2. Estabeleça uma nova ligação de dados

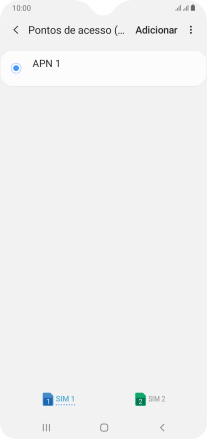

Prima o cartão SIM pretendido.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ae84e5e8-dbe1-42df-9432-29f5dce260e6.png?width=208&height=442)
Prima Adicionar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ae84e5e8-dbe1-42df-9432-29f5dce260e6.png?width=208&height=442)

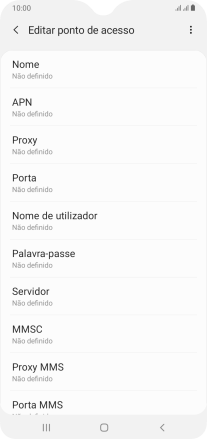

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9d771afa-5f19-4bc5-bf75-1029865847a3.png?width=208&height=442)

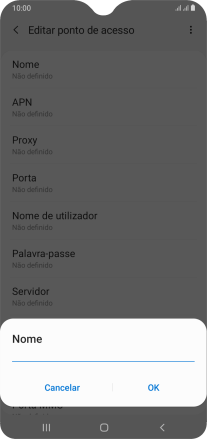

Introduza Vodafone Internet e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-091209fd-bc84-4686-9a13-19d48d01d8a2.png?width=208&height=442)
Vodafone Internet
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9d771afa-5f19-4bc5-bf75-1029865847a3.png?width=208&height=442)

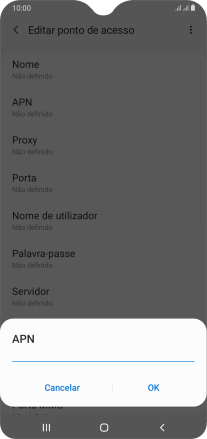

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ce32b183-c869-461c-801b-d922c859ddb1.png?width=208&height=442)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9d771afa-5f19-4bc5-bf75-1029865847a3.png?width=208&height=442)

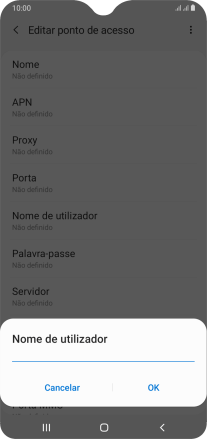

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9de29bb7-bbf2-43e6-b75e-69a186750db3.png?width=208&height=442)
vodafone
5. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9d771afa-5f19-4bc5-bf75-1029865847a3.png?width=208&height=442)

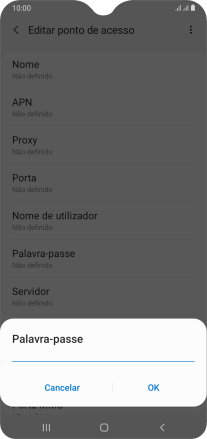

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-cb09b732-ee70-4362-9cb9-40226c4f8590.png?width=208&height=442)
vodafone
6. Introduza o código de país

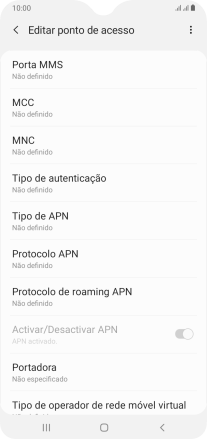

Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-29ee4dcd-0847-448a-9c00-2dc799fd4eea.png?width=208&height=442)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b9141eb3-01e3-40b8-8387-03f67ff7cba0.png?width=208&height=442)
268
7. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-29ee4dcd-0847-448a-9c00-2dc799fd4eea.png?width=208&height=442)

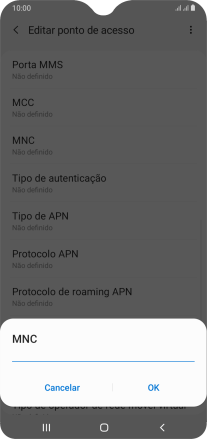

Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2403cb9b-f9b8-41e6-8bb9-4df4c0f7d389.png?width=208&height=442)
01
8. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-29ee4dcd-0847-448a-9c00-2dc799fd4eea.png?width=208&height=442)

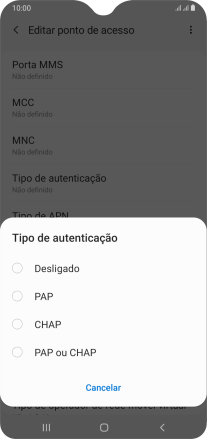

Prima Desligado.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-34b8de26-840f-413c-bc27-b679b44de2a0.png?width=208&height=442)
9. Introduza o tipo de APN
Prima Tipo de APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-29ee4dcd-0847-448a-9c00-2dc799fd4eea.png?width=208&height=442)

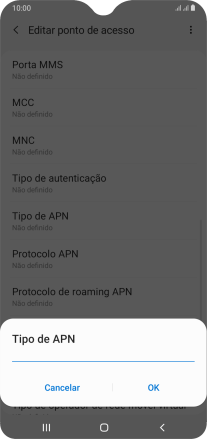

Introduza default e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-98eab49f-2391-4fc6-88a5-f1f99e516f36.png?width=208&height=442)
default
10. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-29ee4dcd-0847-448a-9c00-2dc799fd4eea.png?width=208&height=442)

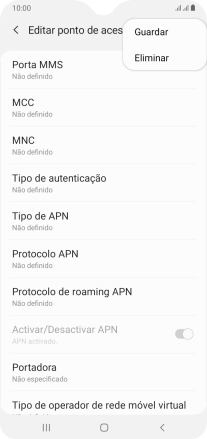

Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-172d9faf-f52e-4e5c-94db-dd4105c549c7.png?width=208&height=442)

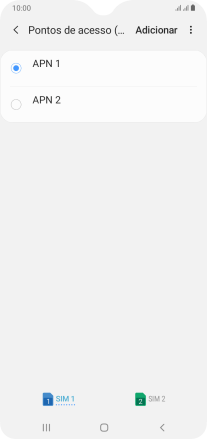

Prima o campo junto à ligação de dados para a ativar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-8681c75c-34ad-4391-ae7d-96983b485587.png?width=208&height=442)
11. Volte ao ecrã inicial
Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-33be2bc2-f799-4296-aa1c-830ca1956088.png?width=208&height=442)
