1. Procure "Nomes dos pontos de acesso (APN)"
Prima Definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5635984d-737d-4f3c-afb7-fd469e38c95d.png?width=200&height=448)

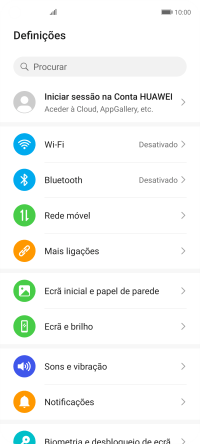

Prima Rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-be1655ac-08d8-4520-9f1e-d5e8440e7fe8.png?width=200&height=448)

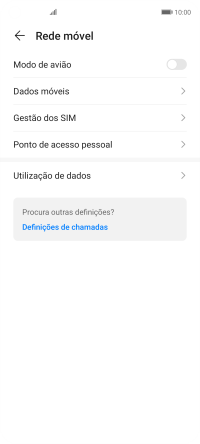

Prima Dados móveis.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d3417649-be9a-4794-ad40-e15f078509fa.png?width=200&height=448)

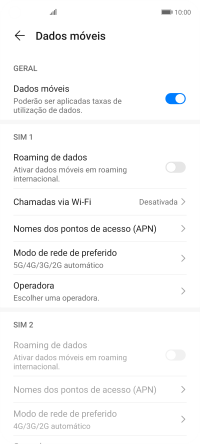

Prima Nomes dos pontos de acesso (APN).
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2e53315b-44d5-4329-8f99-fcf30426528c.png?width=200&height=448)
2. Estabeleça uma nova ligação de dados

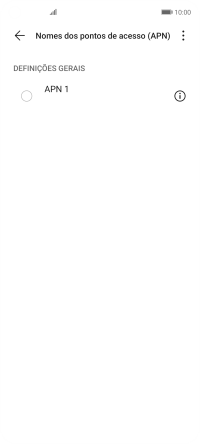

Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ffa9923e-5930-4bbd-bb9b-5b9c92cde2a6.png?width=200&height=448)

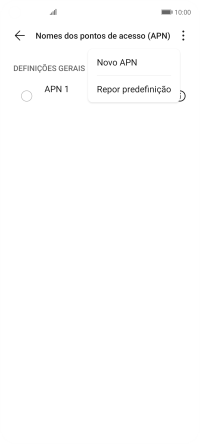

Prima Novo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9353e53e-2838-4f0a-9fa8-c57f700595bf.png?width=200&height=448)
3. Introduza o nome da ligação de dados

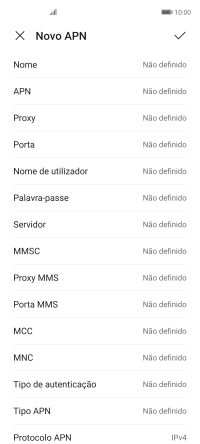

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)
Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-2130a68c-30c8-4893-bebc-b11b5c0a2e90.png?width=200&height=448)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

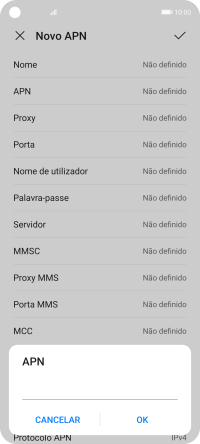

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d4a2b3a8-85c0-4605-8f76-8e6f4aa8825f.png?width=200&height=448)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

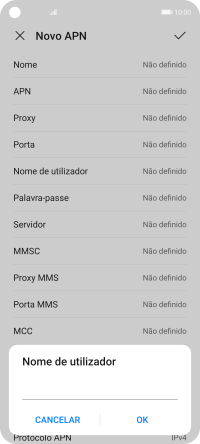

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3e4d9eb2-d09c-4f61-91ab-37ac97fea713.png?width=200&height=448)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

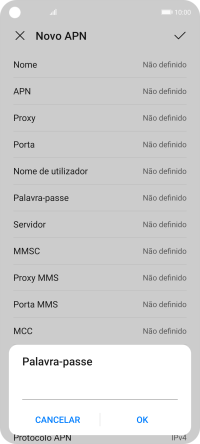

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-a84fec1a-f7d5-4061-a321-31a203506f00.png?width=200&height=448)
vodafone
7. Introduza o servidor de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

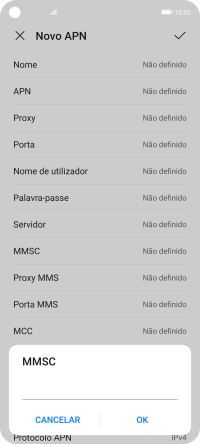

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-672c303d-d71f-4694-b33b-301d4fa00e72.png?width=200&height=448)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)
Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e8f68e71-8972-4f75-845e-08ff36939139.png?width=200&height=448)
iproxy.vodafone.pt
9. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

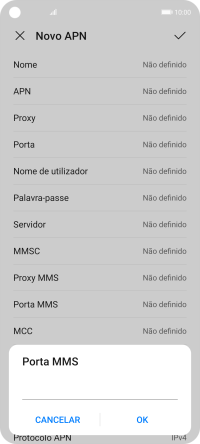

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-88809ca1-c7a1-43e2-bcae-71e4c46b6a17.png?width=200&height=448)
80
10. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3e0f3471-36e4-4ccc-be5e-a721f4ef95c4.png?width=200&height=448)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-24ce0bf4-390c-4d91-913e-2b705f1f96cd.png?width=200&height=448)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

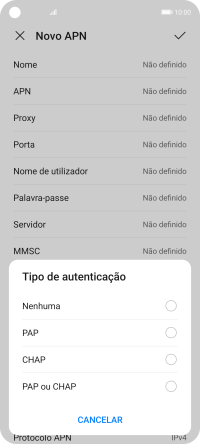

Prima Nenhuma.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1f42bd90-0488-4fa1-8358-7d73d3c12621.png?width=200&height=448)
13. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

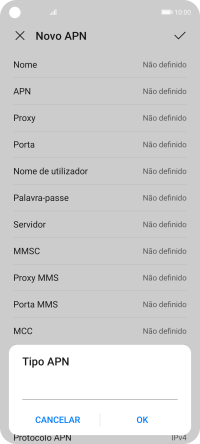

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3354e21b-be25-4503-86e9-a9bff63ffb26.png?width=200&height=448)
mms
14. Guarde a ligação de dados
Prima o ícone para aceitar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-4a6062c9-517b-4bd8-93ab-54973d84cf36.png?width=200&height=448)

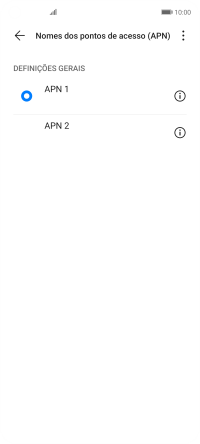

15. Volte ao ecrã inicial
Para voltar ao ecrã inicial, deslize o dedo de baixo para cima a partir da base do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-e2bdd4c2-d3e1-4b69-b610-7bec31d21106.png?width=200&height=448)
