1. Procure "Nomes de pontos de acesso"
Prima Definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b06c6801-53b2-47a0-8ef8-d6dc1f319a9c.png?width=206&height=434)
Prima Redes sem fios e outras.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d54bea74-aaeb-4397-80a1-c5f80feac868.png?width=206&height=434)
Prima Rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-751f2c8b-49f7-41c0-923b-cbfe9ff71304.png?width=206&height=434)

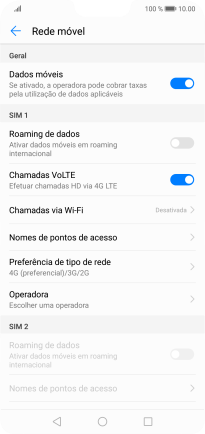

Prima Nomes de pontos de acesso.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-89aa487b-c195-43ec-8f4e-57a814e11600.png?width=206&height=434)
2. Estabeleça uma nova ligação de dados

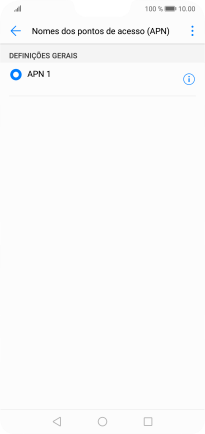

Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5e7919ca-4288-4844-95e0-9ad3143d6c9c.png?width=206&height=434)

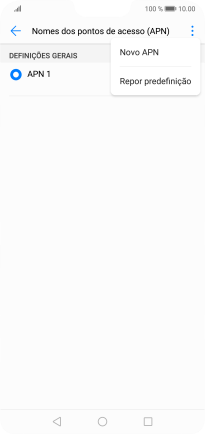

Prima Novo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b45d7f57-a57e-44c6-8a89-66e87a628cec.png?width=206&height=434)
3. Introduza o nome da ligação de dados

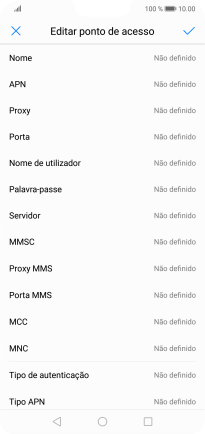

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-7f26c024-b888-4d74-b528-50d65099b432.png?width=206&height=434)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-b28640e6-4f7c-4c0e-99c4-5c1c21135580.png?width=206&height=434)
net2.vodafone.pt
5. Introduza o nome de utilizador

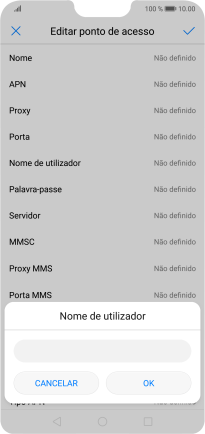

Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-252ca606-3c7b-48e9-b5e1-0ca71ec77329.png?width=206&height=434)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-252f71af-a619-4e83-8794-e6612bf8e5b6.png?width=206&height=434)
vodafone
7. Introduza o servidor de mensagens multimédia

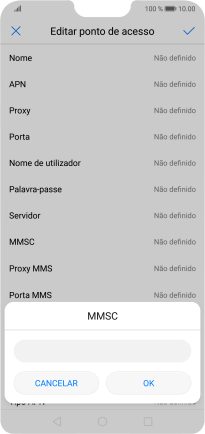

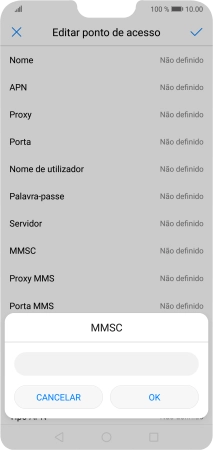

Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)

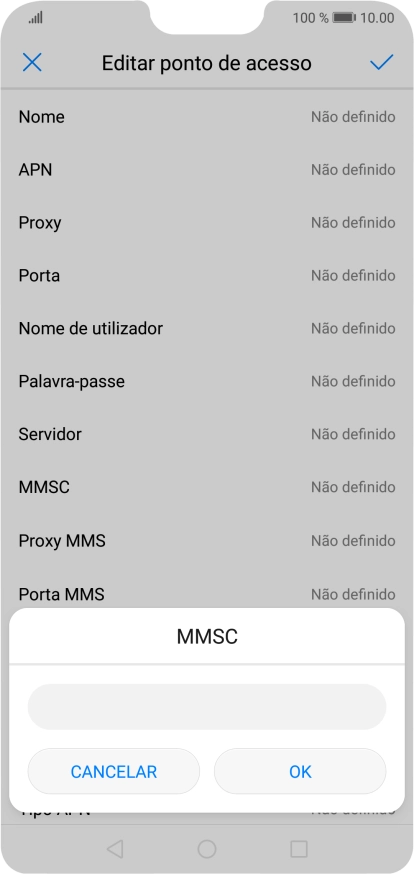

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c96ae95a-7225-4f2e-98e4-7577110e709b.png?width=206&height=434)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP

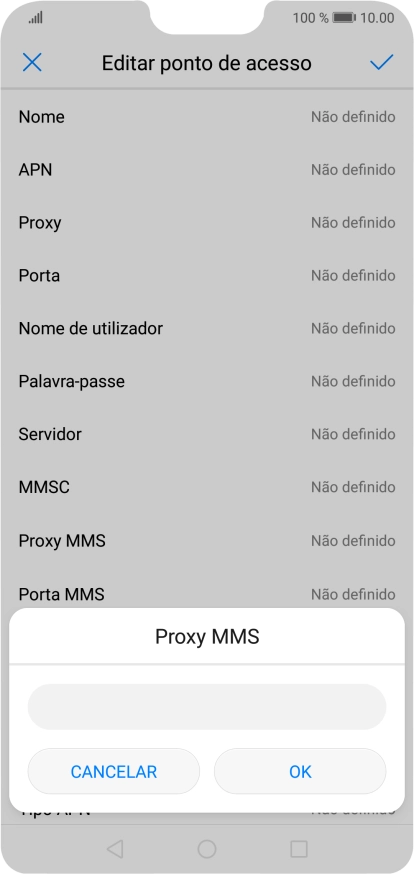

Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-803d34e2-3737-45d8-b9df-7c4af09e0529.png?width=206&height=434)
iproxy.vodafone.pt
9. Introduza o número da porta

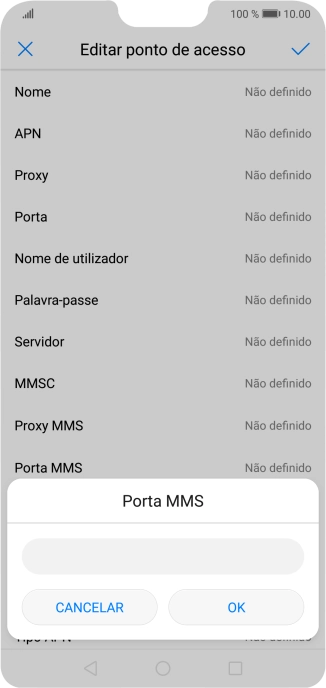

Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ecaa3d85-4aa3-4bda-a9a1-42f48024f881.png?width=206&height=434)
80
10. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1e152782-2cc2-4173-ba50-aa587b6e0757.png?width=206&height=434)
268
11. Introduza o código de rede

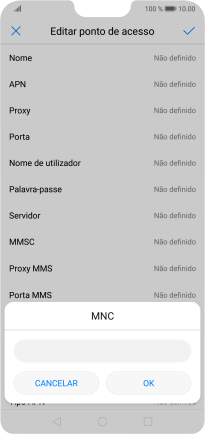

Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-0901e523-b1df-4ced-9b1b-b084fc0c29f4.png?width=206&height=434)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)

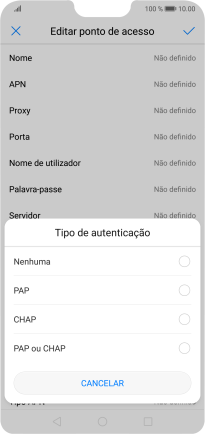

Prima Nenhuma.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-582b4c70-b008-43c9-bc7c-255dced857a4.png?width=206&height=434)
13. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)

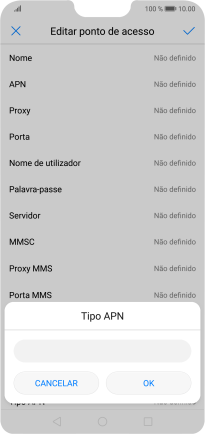

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-c335967a-7905-4cd2-a066-d956961dbc13.png?width=206&height=434)
mms
14. Guarde a ligação de dados
Prima o ícone para aceitar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-1b0d4b92-5bbd-4565-a448-c6af4f29fd2c.png?width=206&height=434)
15. Volte ao ecrã inicial

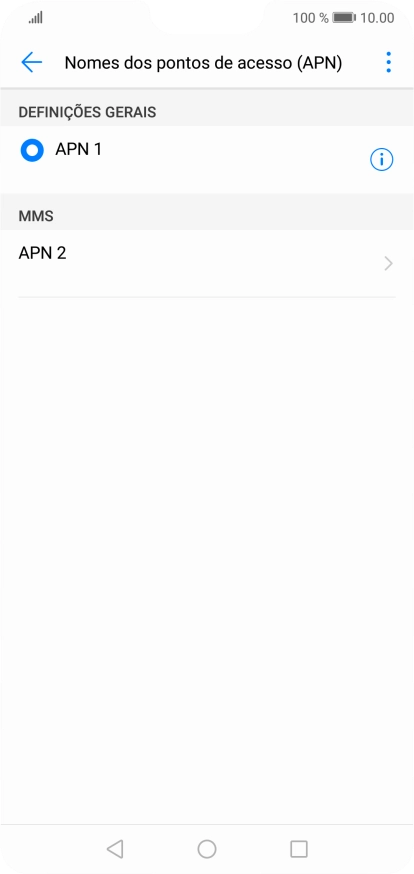

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3cd193ed-90fe-4bb0-b920-c8b6873be523.png?width=206&height=434)
