1. Procure "Nomes de pontos de acceso"
Prima Definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-017713ca-2c80-45d5-a1a0-27ad97d07708.png?width=204&height=446)
Prima Redes sem fios e outras.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ecc11aeb-bb75-4601-adc4-7185ec40632e.png?width=204&height=446)
Prima Rede móvel.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d56d788b-d6a1-429b-88ae-9c407f62d4e2.png?width=204&height=446)
Prima Nomes de pontos de acceso.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-29c801d2-41e0-4ccf-907d-dca28adc87af.png?width=204&height=446)
2. Estabeleça uma nova ligação de dados

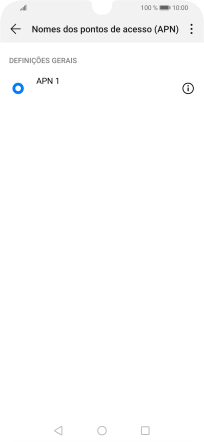

Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3641669c-9dc4-4074-9e40-eaae8d17d0e0.png?width=204&height=446)

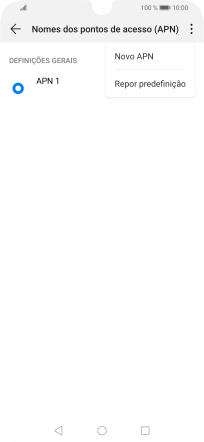

Prima Novo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-ecd87a2a-73cb-4560-8e36-661be7c4bb21.png?width=204&height=446)
3. Introduza o nome da ligação de dados

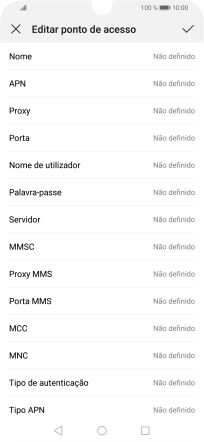

Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

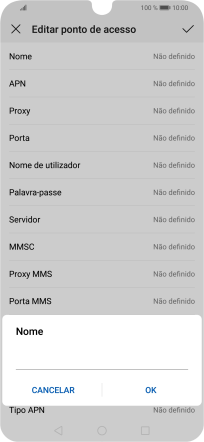

Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-3c799735-580a-4fcf-8021-ff35674da098.png?width=204&height=446)
Vodafone MMS
4. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

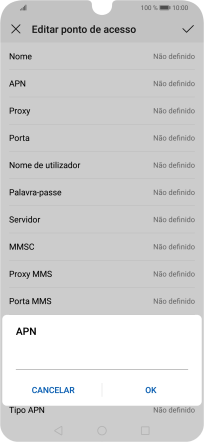

Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-42effa1a-7cc9-48de-8b66-7e45cd993d95.png?width=204&height=446)
net2.vodafone.pt
5. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

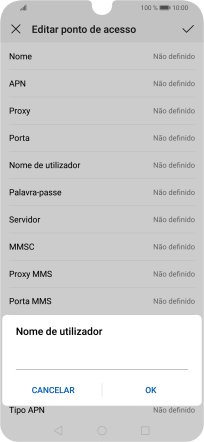

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-dec941a0-7333-454f-9778-71a61198e59a.png?width=204&height=446)
vodafone
6. Introduza a password
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

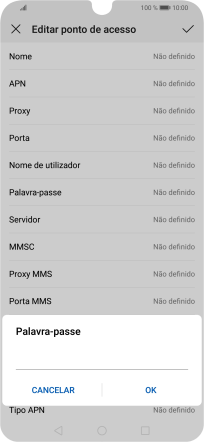

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-5b84d9b6-15d8-4ce5-90ba-c459818963af.png?width=204&height=446)
vodafone
7. Introduza o servidor de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

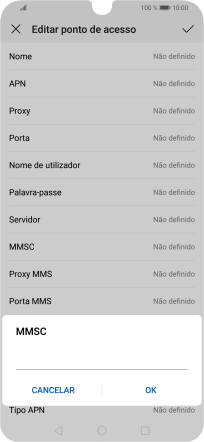

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-10a50781-4366-45ef-b520-b70ea2324669.png?width=204&height=446)
http://mms.vodafone.pt/servlets/mms
8. Introduza o endereço IP
Prima Proxy MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)
Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-15a1c775-e669-4aec-8cf6-fcb3c5ac24e1.png?width=204&height=446)
iproxy.vodafone.pt
9. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

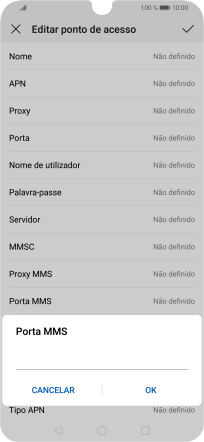

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-9ef12b04-a15c-437f-b5a1-03d4b54051a9.png?width=204&height=446)
80
10. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-d2f27ce1-c170-4c18-8977-02581660b9d1.png?width=204&height=446)
268
11. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-615c7083-99af-48ec-b22e-8fb85e00a3b9.png?width=204&height=446)
01
12. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

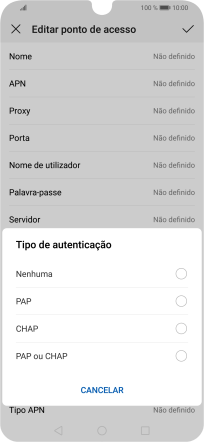

Prima Nenhuma.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-586bbff2-174a-4df1-a1c4-cf0ffe2e7e38.png?width=204&height=446)
13. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)

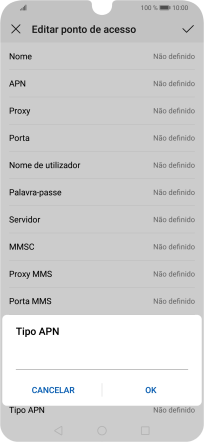

Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-381bca45-b4c7-4f72-a578-7d25cc026d69.png?width=204&height=446)
mms
14. Guarde a ligação de dados
Prima o ícone para guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-df2c1d60-facd-4526-8904-7e70c2bde7e8.png?width=204&height=446)
15. Volte ao ecrã inicial

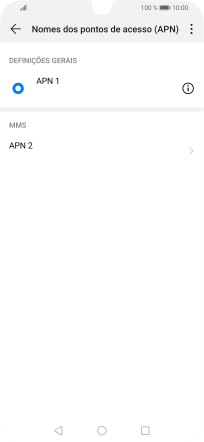

Prima a tecla de início para terminar e voltar ao ecrã inicial.
![](http://wmstatic.global.ssl.fastly.net/ml/7260922-f-922a5d26-132c-463e-950f-fd508866c1d9.png?width=204&height=446)
