1. Procure "Nomes dos Pontos de Acesso"
Deslize dois dedos sobre o ecrã de cima para baixo a partir do topo do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-a16ef1ab-768d-4928-b600-ba749c1622a8.png?width=206&height=458)
Prima o ícone de definições.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-22f62887-58c1-4ab7-83c5-c40d085fc4aa.png?width=206&height=458)
Prima Rede e Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-399bae43-f456-476c-9e7c-7ace214d5d6d.png?width=206&height=458)
Prima SIMs.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-460db4f7-6db1-44f7-acfe-1c6b580c48dd.png?width=206&height=458)

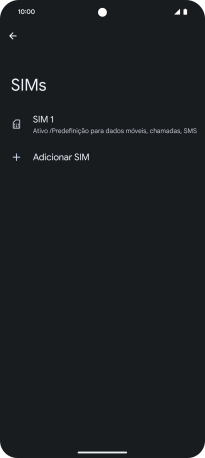

Prima o nome do cartão SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-85393cb3-9c63-49ab-b757-506b371663b1.png?width=206&height=458)

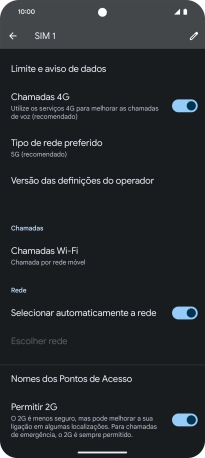

Prima Nomes dos Pontos de Acesso.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-2ef07acd-ca4a-4d64-b654-2d4f498af229.png?width=206&height=458)
2. Estabeleça uma nova ligação de dados
Prima o ícone de nova ligação de dados.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-d89d0918-506a-4146-93f2-ab5d364eae52.png?width=206&height=458)
Prima Nome.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-48eb7524-3215-490a-af44-0f5fe583cbea.png?width=206&height=458)
Introduza Vodafone MMS e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-13e59d41-cb00-4195-a312-af01e15d738b.png?width=206&height=458)
Vodafone MMS
3. Introduza o nome do ponto de acesso (APN)
Prima APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-48eb7524-3215-490a-af44-0f5fe583cbea.png?width=206&height=458)
Introduza net2.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-d12457cd-e897-412d-9a03-aa7037bcd1e0.png?width=206&height=458)
net2.vodafone.pt
4. Introduza o nome de utilizador
Prima Nome de utilizador.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-48eb7524-3215-490a-af44-0f5fe583cbea.png?width=206&height=458)

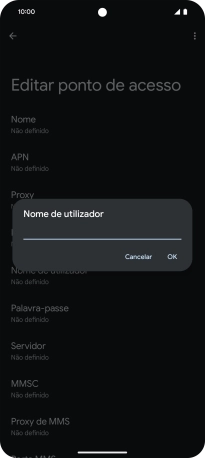

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-ea6be854-a3c2-4388-a86b-7ff118ce7dad.png?width=206&height=458)
vodafone
5. Introduza a palavra-passe
Prima Palavra-passe.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-48eb7524-3215-490a-af44-0f5fe583cbea.png?width=206&height=458)

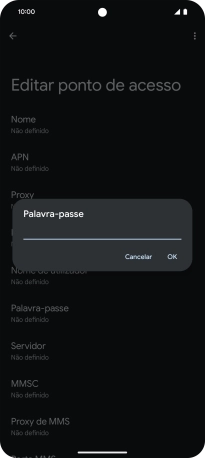

Introduza vodafone e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-f1a26033-4f6b-4e2f-a323-9656e76f2a70.png?width=206&height=458)
vodafone
6. Introduza o servidor de mensagens multimédia
Prima MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-48eb7524-3215-490a-af44-0f5fe583cbea.png?width=206&height=458)

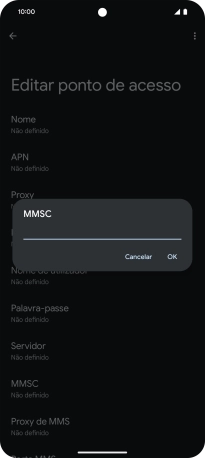

Introduza http://mms.vodafone.pt/servlets/mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-43f7eb2a-d129-4c4f-a330-58d880705fcf.png?width=206&height=458)
http://mms.vodafone.pt/servlets/mms
7. Introduza o endereço IP
Prima Proxy de MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-48eb7524-3215-490a-af44-0f5fe583cbea.png?width=206&height=458)
Introduza iproxy.vodafone.pt e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-b3a1656e-dc1f-44a7-bfa5-6112bb22f86d.png?width=206&height=458)
iproxy.vodafone.pt
8. Introduza o número da porta
Prima Porta MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eeb9c910-2372-4776-b52f-058d1e256db2.png?width=206&height=458)

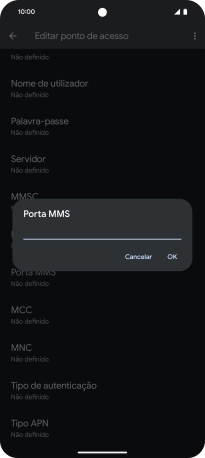

Introduza 80 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-e5118b24-2ee4-453e-8f4e-b5e321d6dda1.png?width=206&height=458)
80
9. Introduza o código de país
Prima MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eeb9c910-2372-4776-b52f-058d1e256db2.png?width=206&height=458)
Introduza 268 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-3e349238-45a4-4a66-9233-486f965c9e88.png?width=206&height=458)
268
10. Introduza o código de rede
Prima MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eeb9c910-2372-4776-b52f-058d1e256db2.png?width=206&height=458)
Introduza 01 e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-fdf471c5-62d4-434c-a964-13a8852a10bf.png?width=206&height=458)
01
11. Escolha o tipo de autenticação
Prima Tipo de autenticação.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eeb9c910-2372-4776-b52f-058d1e256db2.png?width=206&height=458)
Prima Nenhum.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-647f66b7-e274-4956-a030-128782fe903d.png?width=206&height=458)
12. Introduza o tipo de APN
Prima Tipo APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eeb9c910-2372-4776-b52f-058d1e256db2.png?width=206&height=458)
Introduza mms e prima OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eb913516-6f9a-4c37-b6c3-c8735754576b.png?width=206&height=458)
mms
13. Guarde a ligação de dados
Prima o ícone de menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-eeb9c910-2372-4776-b52f-058d1e256db2.png?width=206&height=458)
Prima Guardar.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-55efb0e9-f505-4b0a-ade9-a1ce1872b8de.png?width=206&height=458)
14. Volte ao ecrã inicial
Para voltar ao ecrã inicial, deslize o dedo de baixo para cima a partir da base do ecrã.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-590e1605-db39-451e-bea6-28140ecb40eb.png?width=206&height=458)
